Linear Lighting Systems For Display Illumination

Fiber optic light tubes for cabinet & display illumination

Fiber optic light tubes provide a versatile method to give a general wash of light and can be either easily hidden from view or finished to become an integral part of a display case.

They consist of a metal tube which holds end emitting fibers at close spacings to give an even light. The points of light can be staggered if desired to cover a wider area.

Light Tubes are available in three profiles - 32mm (1.26"), 38mm (1.5") and 52mm (2.05") diameters - as shown below. Typical spacings for the fiber tails are between 20mm (0.79") and 50mm (2").

Our range of Light Tubes are made to order, to the sizes you specify, and are normally custom painted to match their surroundings. They can be also be supplied in raw aluminum or polished stainless steel.

Features & Specifications

Manufactured from round aluminum extrusion, our fiber optic light tubes are available in 3 diameters; 32mm (1.26"), 38mm (1.5") and 52mm (2.05").

They can be custom painted any RAL color to match your specification or can be supplied in raw finish. They are also available in polished stainless steel to special order.

Fiber points are installed along the length of the tube at spacings specified. The points can either be in one line or can be staggered to allow them to cover a wider area.

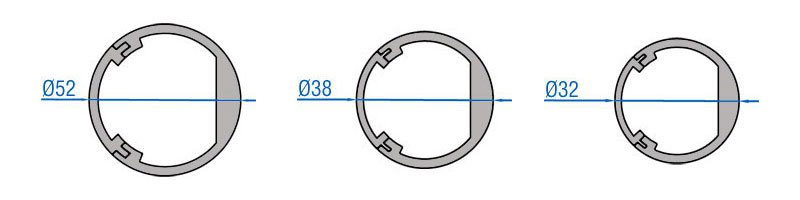

light tube sizes
fiber optic light tubes

Light Tube Common Ends

Light Tubes can be supplied with either standard 30mm (1.2") oror mini 12.5mm (0.49") or 14mm (0.55") common ends. Where a mini common end is used, a 30mm (1.2") adaptor, as shown below, is required to fit a standard illuminator.

Mini common ends allow for more than one independently removable tube to be connected to a illuminator and require a smaller hole to pass through for easier installation. A maximum of three 12.5mm (0.49") mini common ends and two 14mm (0.55") mini common ends can be connected to one 30mm (1.2") common end.

common end adaptors
common end adaptors

Maximum points of light per light tube, when lit from one end using a standard 30mm (1.2") common end.

Profile1.8mm fiber2mm fiber3mm fiber
32mm (1.26")452014
38mm (1.5")703523
52mm (2.05")1155440

Maximum points of light per light tube, when lit from one end using a mini common end.

FiberMax. no. tails
1.8mm31
2.0mm26
3.0mm10

Light Tube Mounting Brackets

A number of different types of accessory brackets are available for Light Tubes.

The Round Brackets are for vertical or horizontal mounting of tubes/bars. The bar is locked with a grub screw. They are also available round with either one straight side or two straight sides to allow mounting as close as possible to a flat surface or in a corner.

Square Brackets are for surface mounting tubes horizontally or vertically and come as split halves.

Clip Brackets allow for horizontal mounting and the stand-off can be extended using threaded rod. These can be fitted on site to both tubes and bars.

Aa well as the brackets detailed below, we can incorporate light bars into gantry systems, allowing them to be stood off from the mounting surface.

Round bracket dimensions

Bar sizePart no.Dim XDim YDim Z
27mm (1.06")ABR27R50mm (2")20mm (0.79")41.5mm (1.63")
32mm (1.26")ABR32R55mm (2.16")20mm (0.79")46.5mm (1.83")
38mm (1.5")ABR38R62mm (2.44")20mm (0.79")53mm (2.09")
44mm (1.73")ABR44R67mm (2.64")20mm (0.79")58.5mm (2.3")
round mounting bracket for fiber optic light tube
dimensions of round mounting bracket for fiber optic light tube

Corner bracket dimensions (mm)

Tube sizePart no.Dim WDim XDim YDim Z
27mm (1.06")ABR27C10.25mm (0.4")50mm (2")20mm (0.79")14.5mm (0.57")
32mm (1.26")ABR32C16.5mm (0.65")55mm (2.16")20mm (0.79")16.5mm (0.65")
38mm (1.5")ABR38C19.5mm (0.77")62mm (2.44")20mm (0.79")18mm (0.71")
44mm (1.73")ABR44C20.5mm (0.81")67mm (2.64")20mm (0.79")20.5mm (0.81")
corner mounting bracket for fiber optic light tube
dimensions of corner mounting bracket for fiber optic light tube

Flat bracket dimensions (mm)

Tube sizePart no.Dim WDim XDim YDim Z
27mm (1.06")ABR27F41.5mm (1.63")50mm (2")20mm (0.79")41.5mm (1.63")
32mm (1.26")ABR32F46.5mm (1.83")55mm (2.16")20mm (0.79")46.5mm (1.83")
38mm (1.5")ABR38F53mm (2.09")62mm (2.44")20mm (0.79")53mm (2.09")
44mm (1.73")ABR44F58.5mm (2.3")67mm (2.64")20mm (0.79")58.5mm (2.3")
flat mounting bracket for fiber optic light tube
dimensions of flat mounting bracket for fiber optic light tube

Square bracket dimensions (mm)

Tube sizePart no.Dim WDim XDim YDim Z
32mmABR32F8mm (0.31")60mm (2.36")44mm (1.73")25mm (1")
38mmABR38F8mm (0.31")66mm (2.6")50mm (2")25mm (1")
Only available for 32 or 38mm bars
square mounting bracket for fiber optic light tube
dimensions of square mounting bracket for fiber optic light tube

Clip bracket dimensions (mm)

Tube sizePart no.Dim WDim XDim YDim Z
27/32mm (1.06"/1.26")ABR32N81.5mm (3.21")34mm (1.34")70mm (2.76")19.5mm (0.77")
38/44mm (1.5"/1.73")ABR40N92mm (3.62")34mm (1.34")70mm (2.76")19.5mm (0.77")
clip mounting bracket for fiber optic light tube
dimensions of clip mounting bracket for fiber optic light tube
