Linear Lighting Systems For Display Illumination

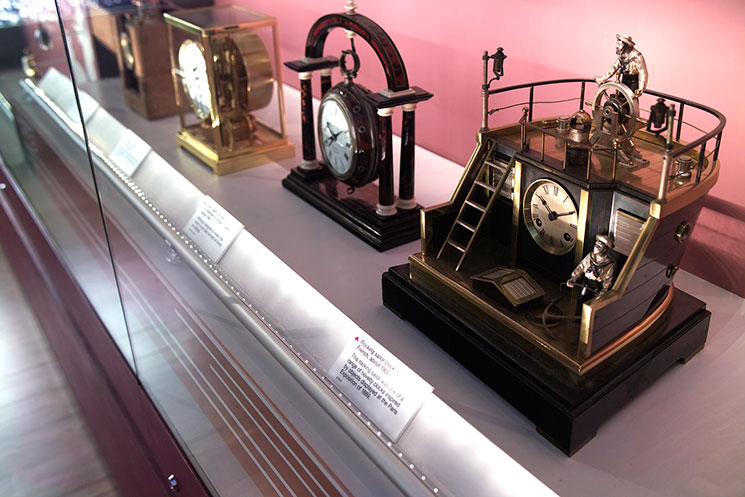

Fiber optic light wands for cabinet & display illumination

Light Wands are a smaller version of the Light Tubes, which use polymer fiber at close spacings to give a very even wash of light, and are ideally suited to small display cases or to light pictures or information boards.

As standard, Light Wands are supplied in either a black or silver anodised finish but they can also be painted to a custom color of your specification.

Two sizes of light wand are available - 20mm (0.79") and 14mm (0.55") diameters.

Features & Specifications

Fiber choice for Light Wands is 0.75mm, 1.0mm or 1.5mm and this is determined by the throw of light needed and how closely together the scallops of light need to merge.

As with the Light Bars & Light Tubes, Wands can be supplied straight, with fiber exiting from one or both ends, or as part of a gantry system. light wand sizes

When specifying light wands, consider the following:
  • The dimensions of the area to be lit
  • The space required to feed through the diameter of the wand at its widest point (usually the endcap)
  • How the tails can run back to the illuminator
  • The intensity of the light required
fiber optic light wand

Light Wand Common Ends

Light Wands can be supplied with either standard 30mm (1.2") or mini 12.5mm (0.49") or 14mm (0.55") common ends. Where a mini common end is used, a 30mm (1.2") adaptor, as shown below, is required to fit a standard illuminator.

Mini common ends allow for more than one independently removable wand to be connected to a illuminator and require a smaller hole to pass through for easier installation. A maximum of three 12.5mm (0.49") mini common ends and two 14mm (0.55") mini common ends can be connected to one 30mm (1.2") common end.

common end adaptors
common end adaptors

These tables show the maximum length of Light Wands achievable, when lit from one end.

20mm (0.79") diameter Light Wand with 30mm (1.2") common end (1 wand per illuminator):

FiberMax. tailsCentresMax. length
0.75mm20012mm (0.47")2.40m (7.87 ft)
0.75mm20015mm (0.59")3.00m (9.84 ft)
0.75mm20020mm (0.79")4.00m (13.1 ft)
1.0mm15012mm (0.47")1.80m (5.9 ft)
1.0mm15015mm (0.59")2.25m (7.38 ft)
1.0mm15020mm (0.79")3.00m (9.84 ft)
1.5mm5012mm (0.47")0.60m (2 ft)
1.5mm5015mm (0.59")0.75m (2.46 ft)
1.5mm5020mm (0.79")1.00m (3.28 ft)

20mm (0.79") diameter Light Wand with 14mm (0.55")
mini common end (1 wand per illuminator):

FiberMax. tailsCentresMax. length
0.75mm19812mm (0.47")2.37m (7.78 ft)
0.75mm19815mm (0.59")2.97m (9.74 ft)
0.75mm19820mm (0.79")3.96m (13 ft)
1.0mm11512mm (0.47")1.38m (4.53 ft)
1.0mm11515mm (0.59"1.72m (5.64 ft)
1.0mm11520mm (0.79")2.30m (7.55 ft)
1.5mm4612mm (0.47")0.55m (1.8 ft)
1.5mm4615mm (0.59"0.69m (2.26 ft)
1.5mm4620mm (0.79")0.92m (3.02 ft)

20mm (0.79") diameter Light Wand with 12.5mm (0.49") mini common end (max. 3 wands per illuminator):

FiberMax. tailsCentresMax. length
0.75mm15612mm (0.47")1.87m (6.13 ft)
0.75mm15615mm (0.59")2.34m (7.68 ft)
0.75mm15620mm (0.79")3.12m (10.2 ft)
1.0mm8512mm (0.47")1.02m (3.35 ft)
1.0mm8515mm (0.59")1.27m (4.17 ft)
1.0mm8520mm (0.79")1.70m (5.58 ft)
1.5mm3612mm (0.47")0.43m (1.41 ft)
1.5mm3615mm (0.59")0.54m (1.77 ft)
1.5mm3620mm (0.79")0.72m (2.36 ft)

14mm (0.55") diameter Light Wand with 12.5mm (0.49") mini or 30mm (1.2") common end:

FiberMax. tailsCentresMax. length
0.75mm12012mm (0.47")1.44m (4.72 ft)
0.75mm12015mm (0.59")1.80m (5.91 ft)
0.75mm12020mm (0.79")2.40m (7.87 ft)
