LED Light Fittings

UFO LD1 LED Downlight Fitting

Our LD range of low glare recessed downlights use Oslon LEDs to provide decorative lighting throughout indoor settings. Each fitting features a discreet design to ensure that your eyes are drawn to the items and areas being illuminated and not on the downlights themselves.
The LD1 comes with a choice of color temperatures, high color rendition and narrow, medium and wide beam options to suit varying requirements. Multiple methods of dimming are also available to provide greater functionality and control over your luminaires. Whether you want to gently wash a wall or highlight specific areas or niches, it is achievable with the LD1.

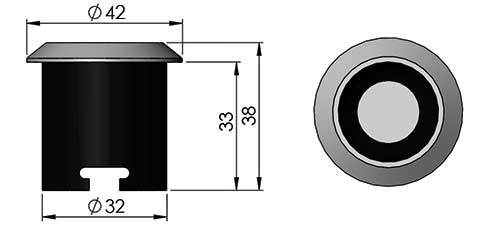

With an angular bezel of 42mm in diameter and a recess depth of 33mm, the fitting can easily be installed in the shallowest of ceilings or other surfaces using the built in spring clip mounting system.
UFO LD1 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminum
Available FinishesBlack, White, Silver or Custom RAL
Dimensions42mm (1.65") Diameter x 38mm (1.5") Length
Securing MethodSecured through surface with springs
UFO LD1 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Color Temperature Options2700K, 3000K, 4000K, 5700K
CRI (typical)2700K: >98
3000K: >98
4000K: >97
5700K: >91
LED Luminous Efficacy(based on 19° lens and 350mA driver)
2700K: 61lm/W
3000K: 65lm/W
4000K: 72lm/W
5700K: 96lm/W
Driver TypeConstant Current LED Driver Required
UFO LD1 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO LD1 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Flange Color

Model Number:
Notes:
Please state RAL number for custom flange colours
