LED Light Fittings

Like the other fittings in our LED downlight range, the LD3 downlight utilises a Cree LED, but unlike the LD1 and LD2, it carries the added benefit of being adjustable. The versatile fitting, which can tilt up to 27°, comes with a choice of narrow, medium and wide beam options to allow you to direct the light exactly where it is needed.

Available in a range of color temperatures with a high color rendition and multiple methods of dimming, the aluminum fitting is ideally suited for indoor use in residential and architectural sectors amongst others.

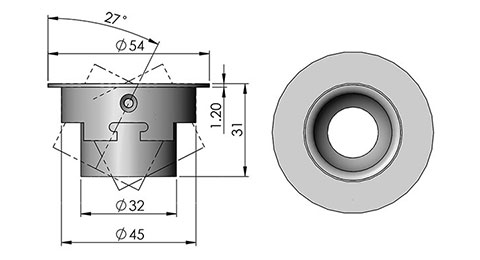

The downlight features a thin bezel of 54mm (2.13") in diameter and can be supplied in a range of finishes and colors to complement almost any décor. Featuring a spring clip mounting system and narrow recess depth of 31mm (1.22"), the LD3 can easily and quickly be installed in the shallowest of spaces.

The UFO LD3 LED Fitting

Light source

LED

Color temperatures & CRI

2700K: 97 CRI (typical)
3000K: 98 CRI (typical)
4000K: 96 CRI (typical)
6000K: 91 CRI (typical)

Power consumption

1.12W per fitting, not inc. driver

Voltage

3.2v (nominal)

Typical luminous flux (based on 19° lens)

2700K: 67lm/w
3000K: 65lm/w
4000K: 72lm/w
6000K: 89lm/w

350mA constant current driver options

No dimming
0-10V dimming
Local potentiometer dimming
Remote potentiometer dimming

Optics

13.5° / 19° / 28°

LED life

50,000 hours

Material & finishes

Aluminum. Black body with black, white, silver or custom RAL colored flange

Configurations

Please click the option buttons below to create your fitting model number.

Model Type

Optics

Color Temp

Flange Color

Model Number:
Notes:
Please state RAL number for custom flange colors
