LED Light Fittings

LED and fiber optic is cleverly combined within the LMC1 to provide a heat and UV free means of illuminating static objects. The minimalist device, which has been designed with museums and retailers primarily in mind, can easily be installed in display cases, or used as a small desk light in libraries and public work spaces.

Internally glass fiber transports light from the LED in the base of the fitting up to the angled opening at the end of the mini crook. The LED light comes with a choice of color temperatures, a high CRI of 95 and dimming functionality when used with a UFO approved dimmer switch. This allows you to adjust the intensity of the light to complement the objects on display below.

The LMC1 is available in a choice of two heights and crook angles to suit varying requirements.

The UFO LMC1 LED Mini Crook

Light source

LED

Color temperatures & CRI

3000K: 97 CRI
4000K: 95 CRI

Power consumption

1.12W per fitting, not inc. driver

Voltage

3.2v (nominal)

Typical luminous flux

3000K: 9lm/w
4000K: 9lm/w

350mA constant current driver options

No dimming
0-10V dimming
Local potentiometer dimming
Remote potentiometer dimming

LED life

50,000 hours

Material & finishes

Stainless Steel

Securing method

Supplied with backnut, 20mm cut out required

Configurations

Please click the option buttons below to create your fitting model number.

Model Type

Optics

Color Temp

Finishes

Crook Angle

Crook Length

Model Number:
Notes:
Stainless steel finishes are a natural color.

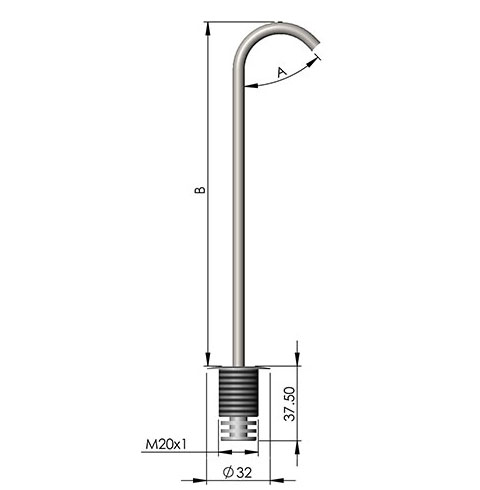

See CAD drawing above for crook angle and crook length dimensions
