Bulk Supply of PMMA Fiber on Reels

High Quality bulk PMMA Fiber held in stock for fast delivery

UFO manufactures and supplies high quality multi-stranded sheathed Mitsubishi/Eska fiber on reels. Our fiber bundles typically consist of many 0.75mm (0.03") diameter PMMA fibers extruded in a halogen free, low smoke material, to create a fiber of larger active diameter.

We can also supply reels of Mitsubishi/ESKA single strand fiber which we sheath in the same material.

Our PMMA fiber products are manufactured from the highest quality Mitsubishi / ESKA raw fiber. We are an offically authorised supplier of Mitsubishi fiber products.

Our fiber can be used for many lighting applications and we regularly supply lighting manufacturers worldwide with standard and custom fiber configurations.

These products can also have their sheathing stripped back at one end to make starry effects through ceilings.

Pricing is dependant on the quantity ordered - please contact us for details. Minimum order quantity for this product is one reel.

Fiber Specifications

Core material Polymethyl Methacrylate
Cladding material Fluorinated Polymer
Refractive index 1.49
Numerical aperture 0.5
Refractive index profile Step index
Operation temperature range -55°C to +70°C in low humidity; <60°C at 95% RH (attenuation change is within 10% after 1000 hours except for that due to absorbed water). Please note that fiber can become brittle at lower temperatures.
Sheathing specifications Megolon S540 is a thermoplastic, halogen free cable sheathing compound which exhibits an excellent level of fire retardancy. This product is specifically aimed at designs of cables requiring a good degree of flexibility and the ability to meet the more stringent fire test specifications.
S540 Toxicity Index (DEF STAN 02-713) 0.4
S540 Halogen Acid Gas Evolution (IEC 60754-1) Zero
S540 Flammability Temperature Index (ISO 4589-3) 330°C (626°F)

Multi-Stranded Fiber Ordering Codes

                Reel Lengths
Code Alternate Code No. of Strands Strand Diameter Approx. Active Diameter Approx. Outer Diameter Minimum Bend Radius Large Plywood1 Small Plywood2 Green Plastic3
FSPT-2 2EG075 2 0.75mm (0.03") 1.2mm (0.05") 2.35mm (0.09") 15mm (0.59") n/a 2700m (8858') 2700m (8858')
FSPT-3 3EG075 3 0.75mm (0.03") 1.5mm (0.06") 2.7mm (0.11") 18mm (0.71") n/a 1800m (5905') 1800m (5905')
FSPT-4 4EG075 4 0.75mm (0.03") 1.8mm (0.07") 3.1mm (0.12") 20mm (0.79") n/a 1500m (4921') 1500m (4921')
FSPT-5 5EG075 5 0.75mm (0.03") 2mm (0.08") 3.7mm (0.15") 20mm (0.79") n/a 700m (2296') 700m (2296')
FSPT-6 6EG075 6 0.75mm (0.03") 2.2mm (0.09") 4.1mm (0.16") 20mm (0.79") n/a 700m (2296') 700m (2296')
FSPT-7 7EG075 7 0.75mm (0.03") 2.4mm (0.09") 4.4mm (0.18") 25mm (0.98") 1500m 700m (2296') 700m (2296')
FSPT-8 8EG075 8 0.75mm (0.03") 2.5mm (0.09") 4.5mm (0.18") 25mm (0.98") 1500m (4921') 700m (2296') 700m (2296')
FSPT-12 12EG075 12 0.75mm (0.03") 3.1mm (0.12") 4.85mm (0.19") 25mm (0.98") 1000m (3280') 500m (1640') 500m (1640')
FSPT-21 21EG075 21 0.75mm (0.03") 4mm (0.16") 6mm (0.24") 28mm (1.1") 500m (1640') 300m (984') 300m (984')
FSPT-25 25EG075 25 0.75mm (0.03") 4.3mm (0.17") 6.35mm (0.25") 30mm (1.2") 500m (1640') 300m (984') 300m (984')
FSPT-33 33EG075 33 0.75mm (0.03") 5mm (0.2") 7.4mm (0.29") 50mm (1.97") 400m (1312') 300m (984') 300m (984')
FSPT-50 50EG075 50 0.75mm (0.03") 6mm (0.24") 8.7mm (0.34") 60mm (2.36") 300m (984') 150m (492') 150m (492')
FSPT-67 67EG075 67 0.75mm (0.03") 7mm (0.28") 10.1mm (0.04") 80mm (3.15") 200m (656') 100m (328') 100m (328')
FSPT-75 75EG075 75 0.75mm (0.03") 7.5mm (0.29") 10.1mm (0.4") 90mm (3.54") 200m (656') 100m (328') 100m (328')
FSPT-88 88EG075 88 0.75mm (0.03") 8mm (0.31") 10.7mm (0.42") 100mm (3.93") 150m (492') 100m (328') 100m (328')
FSPT-100 100EG075 100 0.75mm (0.03") 8.4mm (0.33") 11.3mm (0.45") 105mm (4.13") 150m (492') 100m (328') 100m (328')
-------
FSPT-64.25 64EG025 64 0.25mm (0.01") 2.5mm (0.1") 3.25mm (0.13") 64mm (2.52") Supplied at 500m (1640') length, boxed on special reel

[1] Large plywood reel - dimensions: 500mm diameter x 200mm wide
[2] Small plywood reel - dimensions: 400mm diameter x 175mm wide
[3] Green plastic reel - dimensions: 400mm diameter x 200mm wide

Single Strand Fiber Ordering Codes

            Reel Lengths
Code Nominal Fibre Diameter Nominal Outer Diameter Outer Diameter Tolerance Approx. Weight (exc.packaging) Minimum Bend Radius Small Plywood1 Small Double White2 Eska Datasheet
CK20S 0.5mm (0.02") 1.1mm (0.04") ±0.15mm (0.05") 0.96g/m 15mm (0.6") To Order To Order CK20
CK30S 0.75mm (0.03") 2mm (0.08") ±0.3mm (0.01") 3.9g/m 20mm (0.79") 3000m (9842') 1500m (4921') CK30
CK40S 1mm (0.04") 2.2mm (0.09") ±0.3mm (0.01") 4.9g/m 25mm (1.0") 3000m (9842') 1500m (4921') CK40
CK60S 1.5mm (0.06") 2.6mm (0.10") ±0.3mm (0.01") 6.6g/m 40mm (1.57") 2150m (7053') 700m (2296') CK60
CK80S 2mm (0.08") 3.1mm (0.12") ±0.4mm (0.02") 12.8g/m 60mm (0.2") 1100m (3608') 550m (1804') CK80

[1] Small plywood reel - dimensions: 400mm diameter x 175mm wide

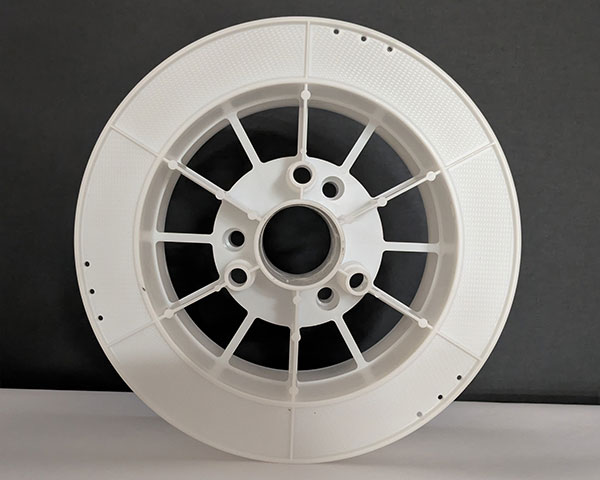

[2] Double white plastic reel - dimensions: 300mm diameter x 200mm wide

Other Information

Stranded fiber cables using 1mm (0.04") and 1.5mm (0.06") fiber can be made to order as can mixed diameter bundles.

We can supply blank common ends and sized ferrules for installers to cut and fit the fiber on site.

Though making harnesses on site does not produce as good or even light output as properly factory terminated harnesses, sometimes it can be necessary to terminate the fiber on site and UFO can supply suitably experienced fitters with the raw materials to do this. We also manufacture a range of Ezefix common ends and ferrules which allow for fiber termination by an end user.
