UFO Licht Website PMMA Fiber Optic Harnesses
UFO manufacture a range of side emitting PMMA fiber harnesses, which are generally used for either sensory or decorative purposes.
Our Side Sparkle, Stariflex and Opulence harnesses are widely used in the sensory market and carry EN71 and CPSIA certifications. They are also certified as phthalate free, so are the safest fiber harnesses you can purchase for use in sensory applications.
Stranded side glow and smooth Solidcore fibers are both suitable for installation indoors or out. They are most often used to provide light lines in paving or stair fronts or for illuminating around the perimeter of swimming pools.
PMMA Stranded Side Glow
Overview
UFO stranded sideglow fiber can be used to highlight the perimeter of pools, decks and walkways. It is also often used for illuminating the edges of steps.
Suitable for interior or exterior applications, the fiber is UV protected and has an algaecide and fungicide treated exterior jacket for maximum durability against the elements.
Our Stranded Side Glow fiber is strong enough for use in pools or extremely cold environments and with no heat or electricity running through the cable typical lighting design restrictions are eliminated allowing for an almost unlimited range of design possibilities.
All harnesses are fitted with a standard 30mm common end for connection to a fiber optic illuminator.
Note that stranded side glow fibre can appear slightly speckly - this enhances the light output.
Ordering Codes
| Code | No. of Strands | Outer Diameter | Minimum Bend Radius | Max. Tails per Harness |
|---|---|---|---|---|
| NSG-145 | 126 | 14.5mm (0.57") | 64mm (2.52") | 7 |
| NSG-127 | 84 | 12.7mm (0.5") | 52mm (2.05") | 11 |
| NSG-095 | 42 | 8mm (0.31") | 40mm (1.57") | 22 |
Fiber Construction
Note that dimensions are shown in mm
Constructed from 0.75mm diameter PMMA acrylic optical fibers of twisted sub-bundles within a flexible clear jacket.
The fibers are twisted around a highly reflective PVC internal core that offers flexible stability combined with maximum light output.
| Item | Stranded Side Glow |
|---|---|
| Outer diameter | 8mm (0.31") /12.7mm (0.5") / 14.5mm (0.47") |
| Core | Stranded fiber |
| Outer sheathing | Clear PVC |
Mounting Track
Three sizes of mounting track are available. All are manufactured from clear acrylic.
SGMT-145 - suitable for use with NSG145
SGMT-127 - suitable for use with NSG127
SGMT-095 - suitable for use with NSG095
Note that dimensions are shown in mm
PMMA Side Sparkle
Overview
Super safe sidesparkle PMMA fiber optic cable for decorative and sensory use.
UFO manufactures a range of side sparkle bulk fiber which can be supplied in either a clear or a multi-coloured UV reactive sheathing.
The PVC in these harnesses is phthalate free and the harnesses themselves have CPSIA and EN71 toy certifications so you can be sure you are purchasing a safe, high quality, UK made product.
All harnesses are fitted with a standard 30mm common end for connection to a fiber optic illuminator.
Ordering Codes
| No. Tails and Lengths | 1 Strand Clear Code | 3 Strand Clear Code | 3 Strand UV Code | 6 Strand Clear Code |
|---|---|---|---|---|
| 100 tails at 1m (3.28ft) | SEN1-100-1-CL | SEN3-100-1-CL | SEN3-100-1-UV | SEN6-100-1-CL |
| 100 tails at 2m (6.56ft) | SEN1-100-2-CL | SEN3-100-2-CL | SEN3-100-2-UV | SEN6-100-2-CL |
| 100 tails at 3m (9.84ft) | SEN1-100-3-CL | SEN3-100-3-CL | SEN3-100-3-UV | SEN6-100-3-CL |
| 100 tails at 3.5m (11.48ft) | - | SEN3-100-35-CL | SEN3-100-35-UV | - |
| 150 tails at 1m (3.28ft) | SEN1-150-1-CL | SEN3-150-1-CL | SEN3-150-1-UV | SEN6-150-1-CL |
| 150 tails at 2m (6.56ft) | SEN1-150-2-CL | SEN3-150-2-CL | SEN3-150-2-UV | SEN6-150-2-CL |
| 150 tails at 3m (9.84ft) | SEN1-150-3-CL | SEN3-150-3-CL | SEN3-150-3-UV | SEN6-150-3-CL |
| 200 tails at 1m (3.28ft) | - | SEN3-200-1-CL | SEN3-200-1-UV | - |
| 200 tails at 2m (6.56ft) | - | SEN3-200-2-CL | SEN3-200-2-UV | - |
| 200 tails at 3m (9.84ft) | - | SEN3-200-3-CL | SEN3-200-3-UV | - |
Fiber Construction
| Outer Sheathing OD | 2.2mm (0.09") |
| Outer Sheathing ID | 1.1mm (0.04") | |
| Construction | 1 x 1mm fiber tail |
| Outer Sheathing OD | 2.6mm (0.1") |
| Outer Sheathing ID | 1.5mm (0.06") | |
| Construction | 3 x 0.75mm fiber tails |
| Outer Sheathing OD | 3.2mm (0.12") |
| Outer Sheathing ID | 2.1mm (0.08") | |
| Construction | 6 x 0.75mm fiber tails |
| Item | 1 Strand Sidesparkle fiber | 3 Strand Sidesparkle fiber | 6 Strand Sidesparkle fiber |
|---|---|---|---|
| Outer diameter | 2.2mm (0.09" | 2.6mm (0.1") | 3.2mm (0.12") |
| Core | 1 x 1mm chipped fiber | 3 x 0.75mm chipped fibers | 6 x 0.75mm chipped fibers |
| Outer sheathing | Phthalate free PVC clear or UV reactive coloured | ||
| Max. tails per harness | 500 | 350 | 150 |
| Max. run length | 10m (32.8ft) depending on illuminator output | ||
| Certifications | These products have EN71 and CPSIA toy certifications | ||
Stariflex PMMA Fiber
Overview
A decorative effect for indoor use with the added safety of a PMMA fiber core. Has a wide outer diameter of 7mm (0.27") and is constructed from 12 tails of 1mm fiber.
UFO manufacture a range of certified safe fiber harnesses which can be supplied in either a clear or a multi-coloured UV reactive sheathing.
The PVC in these harnesses is phthalate free and the harnesses themselves have CPSIA and EN71 toy certifications so you can be sure you are purchasing a safe, high quality, UK made product.
All harnesses are fitted with a standard 30mm common end for connection to a fiber optic illuminator.
Ordering Codes
| No. Tails and Lengths | Stariflex Clear Code | Stariflex UV Code |
|---|---|---|
| 8 tails at 1m (3.28ft) | STF-8-1-CL | STF-8-1-UV |
| 8 tails at 2m (6.56ft) | STF-8-2-CL | STF-8-2-UV |
| 12 tails at 1m (3.28ft) | STF-12-1-CL | STF-12-1-UV |
| 12 tails at 2m (6.56ft) | STF-12-2-CL | STF-12-2-UV |
| 15 tails at 1m (3.28ft) | STF-15-1-CL | STF-15-1-UV |
| 15 tails at 2m (6.56ft) | STF-15-2-CL | STF-15-2-UV |
| 20 tails at 1m (3.28ft) | STF-20-1-CL | STF-20-1-UV |
| 20 tails at 2m (6.56ft) | STF-20-2-CL | STF-20-2-UV |
Fiber Construction
| Outer Sheathing OD | 7mm (0.27") |
| Construction | 12 x 1mm fiber tails |
| Item | Stariflex Side Sparkle Fiber |
|---|---|
| Outer diameter | 7mm (0.27") |
| Core | 12 x 1mm chipped fibers |
| Core material | Polymethyl methacrylate resin |
| Cladding Material | Fluorinated PMMA |
| Outer sheathing | Phthalate free PVC clear or UV reactive coloured |
| Max. tails per harness | 40 |
| Max. run length | 8m (26.2ft) depending on illuminator output |
| Certifications | These products have EN71 and CPSIA toy certifications |
Opulence PMMA Fiber
Overview

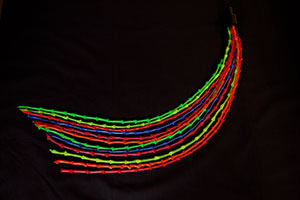

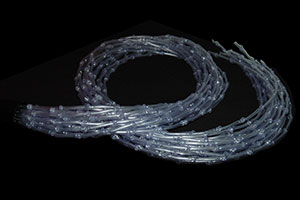

A decorative effect for indoor use with the added safety of a PMMA fiber core. Has a 'knobbly', textured outer sheathing to provide touch stimulation when used in sensory environments.
UFO manufacture a range of certified safe fiber harnesses which can be supplied in either a clear or a multi-coloured UV reactive sheathing.
The PVC in these harnesses is phthalate free and the harnesses themselves have CPSIA and EN71 toy certifications so you can be sure you are purchasing a safe, high quality, UK made product.
All harnesses are fitted with a standard 30mm common end for connection to a fiber optic illuminator.
Ordering Codes
| No. Tails and Lengths | 5 Strand Clear Code | 5 Strand UV Clear Code | 5 Strand UV Multicoloured Code |
|---|---|---|---|
| 8 tails at 1m (3.28ft) | OPU-8-1-CL | OPU-8-1-UCL | OPU-8-1-UV |
| 8 tails at 2m (6.56ft) | OPU-8-2-CL | OPU-8-2-UCL | OPU-8-2-UV |
| 12 tails at 1m (3.28ft) | OPU-12-1-CL | OPU-12-1-UCL | OPU-12-1-UV |
| 12 tails at 2m (6.56ft) | OPU-12-2-CL | OPU-12-2-UCL | OPU-12-2-UV |
| 15 tails at 1m (3.28ft) | OPU-15-1-CL | OPU-15-1-UCL | OPU-15-1-UV |
| 15 tails at 2m (6.56ft) | OPU-15-2-CL | OPU-15-2-UCL | OPU-15-2-UV |
| 18 tails at 1m (3.28ft) | OPU-18-1-CL | OPU-18-1-UCL | OPU-18-1-UV |
| 18 tails at 2m (6.56ft) | OPU-18-2-CL | OPU-18-2-UCL | OPU-18-2-UV |
| 20 tails at 2m (6.56ft) | OPU-20-2-CL | OPU-20-2-UCL | OPU-20-2-UV |
Fiber Construction
| Outer Sheathing OD | 7mm (0.27") on straight sections |
| Construction | 5 x 0.75mm fiber tails |
| Opulence Side Sparkle Fiber | |
|---|---|
| Outer diameter | 7mm (0.27") on straight sections |
| Core | 5 x 0.75mm chipped fibers |
| Core material | Polymethyl methacrylate resin |
| Cladding material | Fluorinated PMMA |
| Outer sheathing | Phthalate free PVC clear or UV reactive coloured |
| Max. tails per harness | 20 |
| Max. tail length | 5m (16.4ft) depending on illuminator output |
| Certifications | These products have EN71 and CPSIA toy certifications |
PMMA Smooth Solid Core
Overview
An optical fiber cable with clear sheathing manufactured with a solid fiber core.
Single core fiber in an clear PVC coating which protects the fiber in arduous conditions.
Provides a smooth light line and is very discrete when not illuminated.
All harnesses are fitted with a standard 30mm common end for connection to a fiber optic illuminator.
Fiber Construction
| Smooth Solid Core | |
|---|---|
| Core | Solid fiber core |
| Outer sheathing | Clear PVC |
