WEATHER RESISTANT
ENCLOSURES
A FULL RANGE OF
Protection from the elements.
CONTACT US TO DISCUSS YOUR PROJECT
Illuminator Accessories
Weather Resistant Enclosures
The UFO range of IP55 rated weatherproof enclosures are designed to house a range of UFO manufactured, low wattage RGBW LED illuminators.
The enclosures support illuminators with either local and remote controlled functionality.
The units are fitted with vents to allow air circulation and with glands for connecting the fiber optic harness, any required DMX cables and the power input.
These units are all IP55 rated when installed as specified by UFO.
The enclosures are available as either a DC powered unit* (with an externally mounted PSU) or alternatively they can be powered straight from a 240V AC socket with the PSU mounted inside the enclosure.
Where the enclosures are sited in proximity to a swimming pool or other body of water, the DC powered option should always be specified for electrical safety reasons.
*Note that the enclosure with the Sirius S illuminator is only available as an AC powered version.
| IP-01 TECHNICAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm |
| Fiber Type | Glass or PMMA |
| Material & Finish | Mild steel Powder coated in RAL 7035 light grey |
| Overall Dimensions | 300mm x 250mm x 155mm 11.8" x 9.8" x 6.1" |
| Protection Category* | IP55 |
| Min. Ambient Temperature | -10°C / 14°F |
| Max. Ambient Temperature | 45°C / 113°F |
| Power Input (10W max.) | Either 240VAC, 50Hz or 12V DC |
| Compatible Illuminators | MicroLED 1000 MicroLED 4000 |
| Control Options (Varies depending on model) | Manual Control DMX controlled by external controller DMX Master/Slave RF Remote Control |
* Note that the IP protection category only applies when the enclosure is mounted as specified by UFO. See the Installation Guide tab for details. Mounting the enclosure in any other way invalidates the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting.
| IP-01 DOWNLOADS |
|---|
| IP-01 DIMENSIONS |
|---|
Sea Water & Saline
Please be aware that UFO will not specify, supply or install this illuminator for use in any area where corrosion or damage from saline may occur. This includes near the sea, on ships or in any other areas where the illuminator would be in an unprotected area. Damage caused by salt water due to improper, unprotected siting of the illuminator will void any and all UFO warranties on the product. UFO strongly recommend that the illuminator is not installed in any location where such damage may occur.
Product Details & Ordering Codes
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP01-MIC1000-AC | MicroLED 1000 | 120VAC 60Hz | 5W | Manual | Glass or PMMA |
| UFO IP01-MIC1000-DC | MicroLED 1000 | 12V DC | 5W | Manual | Glass or PMMA |
| UFO IP01-MIC4000-AC | MicroLED 4000 | 120VAC 60Hz | 5W | Manual, DMX, RF Remote | Glass or PMMA |
| UFO IP01-MIC4000-DC | MicroLED 4000 | 12V DC | 5W | Manual, DMX, RF Remote | Glass or PMMA |
| IP-02 TECHNICAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm |
| Fiber Type | Glass or PMMA |
| Material & Finish | Mild steel Powder coated in RAL 7035 light grey |
| Overall Dimensions | 400mm x 300mm x 210mm 15.7" x 11.8" x 8.3" |
| Protection Category* | IP55 |
| Min. Ambient Temperature | -10°C / 14°F |
| Max. Ambient Temperature | 45°C / 113°F |
| Power Input (10W max.) | Either 240VAC, 50Hz / 12V DC or 24V DC |
| Compatible Illuminators | MicroLED 5000T Nova Nova Mini Gemini Vega White Light & Decorative Models |
| Control Options (Varies depending on model) | Manual Control DMX controlled by external controller DMX Master/Slave RF Remote Control 0-10V Remote Control |
* Note that the IP protection category only applies when the enclosure is mounted as specified by UFO. See the Installation Guide tab for details. Mounting the enclosure in any other way invalidates the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting.
| IP-02 DOWNLOADS |
|---|
| IP-02 DIMENSIONS |
|---|
Sea Water & Saline
Please be aware that UFO will not specify, supply or install this illuminator for use in any area where corrosion or damage from saline may occur. This includes near the sea, on ships or in any other areas where the illuminator would be in an unprotected area. Damage caused by salt water due to improper, unprotected siting of the illuminator will void any and all UFO warranties on the product. UFO strongly recommend that the illuminator is not installed in any location where such damage may occur.
Product Details & Ordering Codes
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP02-MIC5000T-AC | MicroLED 5000T | 120VAC 60Hz | 5W | DMX, Manual | Glass or PMMA |
| UFO IP02-MIC5000T-DC | MicroLED 5000T | 12V DC | 5W | DMX, Manual | Glass or PMMA |
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP02-NOVA-CT-AC | Nova | 120VAC 60Hz | 46W | DMX, Manual | Glass or PMMA |
| UFO IP02-NOVA-CT-DC | Nova | 24V DC | 46W | DMX, Manual | Glass or PMMA |
| UFO IP02-NOVA-CT-T-AC | Nova Twinkle | 120VAC 60Hz | 46W | DMX, Manual | Glass or PMMA |
| UFO IP02-NOVA-CT-T-DC | Nova Twinkle | 24V DC | 46W | DMX, Manual | Glass or PMMA |
| UFO IP02-NOVA-CT-R-AC | Nova Remote | 120VAC 60Hz | 46W | DMX, Manual, RF Remote | Glass or PMMA |
| UFO IP02-NOVA-CT-R-DC | Nova Remote | 24V DC | 46W | DMX, Manual, RF Remote | Glass or PMMA |
| UFO IP02-NOVA-CT-T-R-AC | Nova Twinkle Remote | 120VAC 60Hz | 46W | DMX, Manual, RF Remote | Glass or PMMA |
| UFO IP02-NOVA-CT-T-R-DC | Nova Twinkle Remote | 24V DC | 46W | DMX, Manual, RF Remote | Glass or PMMA |
CT in product code is used to designate white color temperature - 30 (3000K), 40 (4000K) or 65 (6500K).
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP02-NOVA MINI-CT-DMX-AC | Nova Mini | 120VAC 60Hz | 46W | DMX, Manual | Glass or PMMA |
| UFO IP02-NOVA MINI-CT-DMX-DC | Nova Mini | 24V DC | 46W | DMX, Manual | Glass or PMMA |
| UFO IP02-NOVA MINI-CT-DMX-R-AC | Nova Mini Remote | 120VAC 60Hz | 46W | DMX, Manual, Remote | Glass or PMMA |
| UFO IP02-NOVA MINI-CT-DMX-R-DC | Nova Mini Remote | 24V DC | 46W | DMX, Manual, Remote | Glass or PMMA |
CT in product code is used to designate white color temperature - 30 (3000K), 40 (4000K) or 65 (6500K).
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP02-GEM SLP-CT-M-AC | Gemini Slimline | 120VAC 60Hz | 20W | Manual | Glass or PMMA |
| UFO IP02-GEM SLP-CT-M-DC | Gemini Slimline | 24V DC | 20W | Manual | Glass or PMMA |
| UFO IP02-GEM SLP-CT-DMX-AC | Gemini Slimline DMX | 120VAC 60Hz | 20W | DMX | Glass or PMMA |
| UFO IP02-GEM SLP-CT-DMX-DC | Gemini Slimline DMX | 24V DC | 20W | DMX | Glass or PMMA |
| UFO IP02-GEM SLP-CT-0-10-AC | Gemini Slimline 0-10 | 120VAC 60Hz | 20W | 0-10V | Glass or PMMA |
| UFO IP02-GEM SLP-CT-0-10-DC | Gemini Slimline 0-10 | 24V DC | 20W | 0-10V | Glass or PMMA |
CT in product code is used to designate white color temperature - 27 (2700K), 30 (3000K) or 40 (4000K).
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP02-VEGA-CT-M-C-M-AC | Vega Decorative Colour | 120VAC 60Hz | 18W | Manual Dim & Speed | Glass or PMMA |
| UFO IP02-VEGA-CT-M-C-M-DC | Vega Decorative Colour | 24V DC | 18W | Manual Dim & Speed | Glass or PMMA |
| UFO IP02-VEGA-CT-M-T-M-AC | Vega Decorative Twinkle | 120VAC 60Hz | 18W | Manual Dim & Speed | Glass or PMMA |
| UFO IP02-VEGA-CT-M-T-M-DC | Vega Decorative Twinkle | 24V DC | 18W | Manual Dim & Speed | Glass or PMMA |
| UFO IP02-VEGA-CT-X-C-M-AC | Vega Decorative Colour | 120VAC 60Hz | 18W | Manual Dim | Glass or PMMA |
| UFO IP02-VEGA-CT-X-C-M-DC | Vega Decorative Colour | 24V DC | 18W | Manual Dim | Glass or PMMA |
| UFO IP02-VEGA-CT-X-T-M-AC | Vega Decorative Twinkle | 120VAC 60Hz | 18W | Manual Dim | Glass or PMMA |
| UFO IP02-VEGA-CT-X-T-M-DC | Vega Decorative Twinkle | 24V DC | 18W | Manual Dim | Glass or PMMA |
| UFO IP02-VEGA-CT-X-C-DMX-AC | Vega Decorative Colour | 120VAC 60Hz | 18W | DMX | Glass or PMMA |
| UFO IP02-VEGA-CT-X-C-DMX-DC | Vega Decorative Colour | 24V DC | 18W | DMX | Glass or PMMA |
| UFO IP02-VEGA-CT-X-T-DMX-AC | Vega Decorative Twinkle | 120VAC 60Hz | 18W | DMX | Glass or PMMA |
| UFO IP02-VEGA-CT-X-T-DMX-DC | Vega Decorative Twinkle | 24V DC | 18W | DMX | Glass or PMMA |
| UFO IP02-VEGA-CT-X-C-0-10-AC | Vega Decorative Colour | 120VAC 60Hz | 18W | 0-10V | Glass or PMMA |
| UFO IP02-VEGA-CT-X-C-0-10-DC | Vega Decorative Colour | 24V DC | 18W | 0-10V | Glass or PMMA |
| UFO IP02-VEGA-CT-X-T-0-10-AC | Vega Decorative Twinkle | 120VAC 60Hz | 18W | 0-10V | Glass or PMMA |
| UFO IP02-VEGA-CT-X-T-0-10-DC | Vega Decorative Twinkle | 24V DC | 18W | 0-10V | Glass or PMMA |
CT in product code is used to designate white color temperature - 30 (3000K) or 40 (4000K).
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP02-VEGA SLP-CT-M-AC | Vega Slimline | 120VAC 60Hz | 18W | Manual | Glass or PMMA |
| UFO IP02-VEGA SLP-CT-M-DC | Vega Slimline | 24V DC | 18W | Manual | Glass or PMMA |
| UFO IP02-VEGA SLP-CT-DMX-AC | Vega Slimline DMX | 120VAC 60Hz | 18W | DMX | Glass or PMMA |
| UFO IP02-VEGA SLP-CT-DMX-DC | Vega Slimline DMX | 24V DC | 18W | DMX | Glass or PMMA |
| UFO IP02-VEGA SLP-CT-0-10-AC | Vega Slimline 0-10 | 120VAC 60Hz | 18W | 0-10V | Glass or PMMA |
| UFO IP02-VEGA SLP-CT-0-10-DC | Vega Slimline 0-10 | 24V DC | 18W | 0-10V | Glass or PMMA |
CT in product code is used to designate white color temperature - 30 (3000K) or 40 (4000K).
| IP-03 TECHNICAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm |
| Fiber Type | Glass or PMMA |
| Material & Finish | Mild steel Powder coated in RAL 7035 light grey |
| Overall Dimensions | 500mm x 400mm x 210mm 19.7" x 15.7" x 8.3" |
| Protection Category* | IP55 |
| Min. Ambient Temperature | -10°C / 14°F |
| Max. Ambient Temperature | 45°C / 113°F |
| Power Input (10W max.) | Either 240VAC, 50Hz / 12V DC or 48V DC |
| Compatible Illuminators | Sirius White Light Sirius Decorative Nebula White Light & RGB Models |
| Control Options (Varies depending on model) | Manual Control DMX controlled by external controller DMX Master/Slave RF Remote Control 0-10V Remote Control 1-10V Remote Control |
* Note that the IP protection category only applies when the enclosure is mounted as specified by UFO. See the Installation Guide tab for details. Mounting the enclosure in any other way invalidates the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting.
| IP-03 DOWNLOADS |
|---|

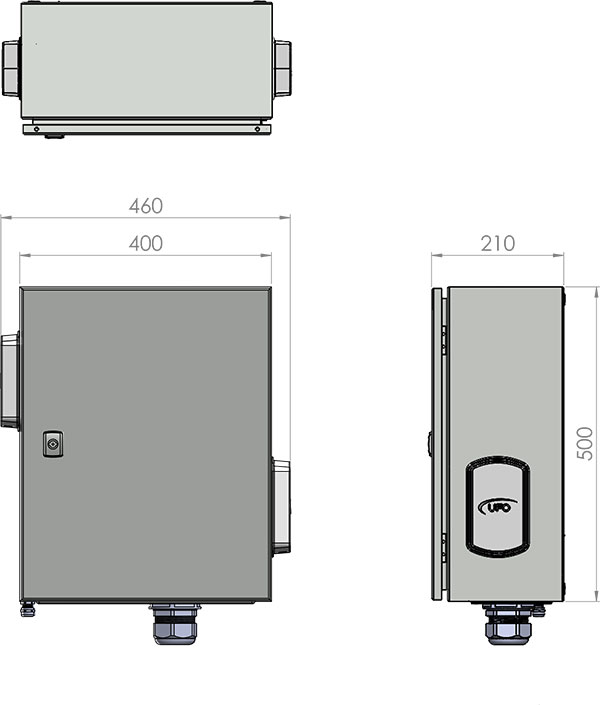

| IP-03 DIMENSIONS |
|---|
Sea Water & Saline
Please be aware that UFO will not specify, supply or install this illuminator for use in any area where corrosion or damage from saline may occur. This includes near the sea, on ships or in any other areas where the illuminator would be in an unprotected area. Damage caused by salt water due to improper, unprotected siting of the illuminator will void any and all UFO warranties on the product. UFO strongly recommend that the illuminator is not installed in any location where such damage may occur.
Product Details & Ordering Codes
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP03-SIR-CT-AC | Sirius White Light | 120VAC 60Hz | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-DC | Sirius White Light | 12V DC | 90W | Manual, DMX, 0-10V | Glass or PMMA |
CT in product code is used to designate white color temperature - WW (warm white / 3000K), NW (neutral white / 4000K), SW (studio white / 5300K), CW (cool white / 5500k)
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP03-SIR-CT-C-X-AC | Sirius Colour Wheel no Sensor | 120VAC 60Hz | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-C-X-DC | Sirius Colour Wheel no Sensor | 12V DC | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-C-S-AC | Sirius Colour Wheel & Sensor | 120VAC 60Hz | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-C-S-DC | Sirius Colour Wheel & Sensor | 12V DC | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-T-X-AC | Sirius Twinkle Wheel no Sensor | 120VAC 60Hz | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-T-X-DC | Sirius Twinkle Wheel no Sensor | 12V DC | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-T-S-AC | Sirius Twinkle Wheel & Sensor | 120VAC 60Hz | 90W | Manual, DMX, 0-10V | Glass or PMMA |
| UFO IP03-SIR-CT-T-S-DC | Sirius Twinkle Wheel & Sensor | 12V DC | 90W | Manual, DMX, 0-10V | Glass or PMMA |
CT in product code is used to designate white color temperature - WW (warm white / 3000K), NW (neutral white / 4000K), SW (studio white / 5300K), CW (cool white / 5500k)
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP03-NEB-RGB-AC | Nebula RGB | 120VAC 60Hz | 20W | Manual, DMX | Glass or PMMA |
| UFO IP03-NEB-RGB-DC | Nebula RGB | 12V DC | 20W | Manual, DMX | Glass or PMMA |
| UFO IP03-NEB-WLCT-AC | Nebula White Light | 120VAC 60Hz | 20W | Manual, DMX | Glass or PMMA |
| UFO IP03-NEB-WLCT-DC | Nebula White Light | 12V DC | 20W | Manual, DMX | Glass or PMMA |
CT in product code is used to designate white color temperature - 27 (2700K), 30 (3000K), 40 (4000K), 57 (5700K), 65 (6500K) or MX (mixed).
| IP-04 TECHNICAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm |
| Fiber Type | Glass or PMMA |
| Material & Finish | Mild steel Powder coated in RAL 7035 light grey |
| Overall Dimensions | 500mm x 400mm x 260mm 19.7" x 15.7" x 10.2" |
| Protection Category* | IP55 |
| Min. Ambient Temperature | -10°C / 14°F |
| Max. Ambient Temperature | 45°C / 113°F |
| Power Input (10W max.) | Either 240VAC, 50Hz / 48V DC (Comet Only) |
| Compatible Illuminators | Sirius S Comet |
| Control Options (Varies depending on model) | Manual Control DMX controlled by external controller DMX Master/Slave 0-10V Remote Control 1-10V Remote Control DALI |
* Note that the IP protection category only applies when the enclosure is mounted as specified by UFO. See the Installation Guide tab for details. Mounting the enclosure in any other way invalidates the IP rating and the product warranty. UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting.
| IP-04 DOWNLOADS |
|---|
| IP-04 DIMENSIONS |
|---|
Sea Water & Saline
Please be aware that UFO will not specify, supply or install this illuminator for use in any area where corrosion or damage from saline may occur. This includes near the sea, on ships or in any other areas where the illuminator would be in an unprotected area. Damage caused by salt water due to improper, unprotected siting of the illuminator will void any and all UFO warranties on the product. UFO strongly recommend that the illuminator is not installed in any location where such damage may occur.
Product Details & Ordering Codes
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP04-SIRS-CTCR-AC | Sirius S | 120VAC 60Hz | 75W | Manual / DMX / 0-10V / 1-10V | Glass or PMMA |
CT in product code is used to designate white color temperature - 22 (2200K), 27 (2700K), 30 (3000K), 40 (4000K)
CR in product code is used to designate the array's CRI (80 or 90)
Product Details & Ordering Codes
| Ordering Code | Illuminator Model | Power Variant | Max. Wattage | Control Modes | Harness Type |
|---|---|---|---|---|---|
| UFO IP04-COM-50-AC | Comet | 120VAC 60Hz | 60W | Manual, DMX, 0-10V, 1-10V | Glass or PMMA |
| UFO IP04-COM-50-DC | Comet | 48V DC | 60W | Manual, DMX, 0-10V, 1-10V | Glass or PMMA |
| UFO IP04-COM-50-D-AC | Comet | 120VAC 60Hz | 60W | As above + Dali with interface | Glass or PMMA |
| UFO IP04-COM-50-D-DC | Comet | 48V DC | 60W | As above + Dali with interface | Glass or PMMA |
| ENCLOSURE |
|---|
The IP55 certification of these weatherproof enclosures is only valid if the enclosure is wall mounted in the orientation detailed opposite. It is important that there is a minimum of 300mm (12") of space around all sides of the enclosure to allow for air circulation and to prevent overheating.
Mounting the enclosure in any other way will invalidate the IP rating and the product warranty.
UFO will accept no responsibility for any loss or damage that occurs due to incorrect mounting.
Consult the enclosure's user guide for full mounting instructions.
| OVERVIEW |
|---|
| REMOTE PSU (DC POWERED VERSIONS ONLY) |
|---|
DC powered variants of the enclosure are supplied with a 10 metre (32ft) long cable for use between the PSU and the enclosure entry.
This is the maximum recommended cable size and is provided so that the PSU can be located a good distance from the enclosure when it is sited near a pool or other large body of water.
| OVERVIEW |
|---|
| INTEGRAL PSU (AC POWERED VERSIONS ONLY) |
|---|
AC powered variants of the enclosure require an AC electrical outlet to be within 2 metres of the enclosure. The PSU is located within the enclosure body.
These variants are suitable for use where dust ingress is a potential issue or where the enclosure may be subject to rainfall or spray from above.
