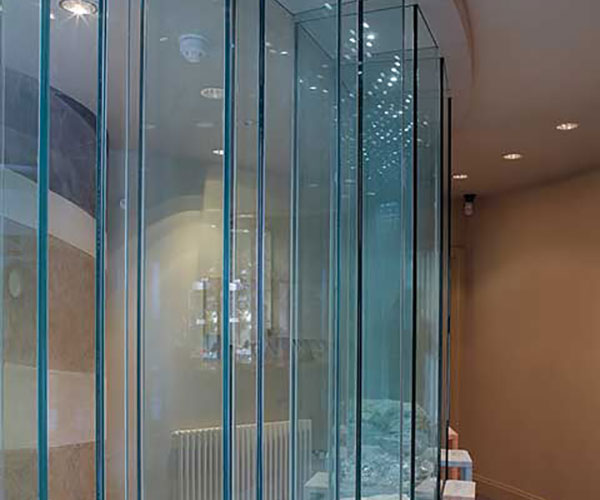

Lighting Kit With Recessed Downlights
The new cabinet lighting kits from UFO. Cost effective self install fiber optic lighting systems for display illumination.
The kits include a powerful DMX compatible illuminator with manual dimming control via a rear knob and a choice of 2 color temperatures; both featuring a color rendering index (CRI) of over 90.
Fittings included are easy to install - just drill a 40mm diameter hole and fit them into place - and are fully articulated allowing the clean, crisp white light to be directed to exactly where it’s needed.
A choice of fiber harness types; glass or PMMA complete the kit specifications. Both offer great light output and are a suitable choice for display lighting systems.
UFO Gemini LED Illuminator
A slimline illuminator with a High Color Rendering Index, making it very suitable for display case illumination.
Powerful light output combined with a very high color rendering index of >93, as well as cool and near silent operation make this unit the obvious choice when using fiber optics to illuminate exhibits in museum and gallery display cases.
With a 50,000 hour lamp life, using this illuminator means that costly and time consuming maintenance costs are reduced to almost nil.
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | ABS - grey |
| Dimensions (L x W x H) | 222mm x 114mm x 81mm 8.74" x 4.49" x 3.19" |
| Weight | 1.05kg |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | Manual Dimming |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light - 9mm LED CoB |
| LED Array Power | 20W |
| LED Array Model | Luxeon 1203 CoB |
| LED Array Life (L70, B10) | >50,000 hours (typical) |
| 3000K LED Option | 95CRI / 1170lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-264Vac |
| Mains Running Current | 0.22A @240Vac |
| Mains Voltage VA Rating | 50VA |
| External PSU Type | PowerPax, 12VDC, 5A, 60W |
| Fan Type | Sunon, 60mm, 10dBA |
| AVAILABLE ACCESSORIES | |
|---|---|
| MAS0403021R5 | Weatherproof enclosure |

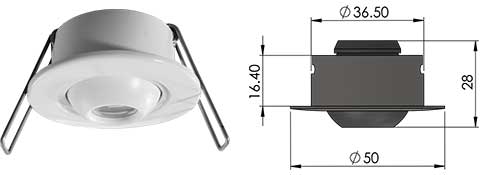

UFO 11D Articulated Downlight Fitting
An adjustable recessed downlight fitting, secured through the mounting surface with spring clips.
Available in a range of finishes, the eyeball in this fitting can be rotated and tilted to point directly at any objects to be illuminated. The light beam from this fitting is also focusable.
Also suitable for mounting in the base of a display case and illuminating upwards.
Kits are available with a choice of 6, 8 or 10 fittings.
| TECHNICAL INFORMATION | |
|---|---|
| Lens | 18mm (0.71") biconvex clear focusing lens |
| Focus Range | 30° - 50°; |
| Rotation & Tilt | 360° rotation / 20° tilt |
| Available Finishes | Black or white |
| Mounting Method | Recessed, secured with springs |
| Mounting Hole Size | 40mm(1.57") |
| Fiber Sizes | 2mm (0.08") to 8mm (0.31") |
Glass or PMMA Harness Options
We can supply these kits with a choice of either glass or PMMA fiber for the ultimate flexibility. All tail lengths are 2.5 meters (8.2ft).
Both harness types offer great light output. PMMA fiber is a more cost effective option, however for unparalleled light output and the best color rendition, UFO glass fiber harness will show your displayed objects in their best possible light.
Both types of fiber measure 4mm active diameter and come with tails that are terminated with polished ferrules for attaching to the 11D fittings, and a polished common end to plug into the illuminator.
