LED Track Lighting

A contemporary LED lighting system which has been specially designed for use where unobtrusive but powerful and controllable lighting is required for display illumination.

The Apollo is available in three configurations - a gantry, a linear wand and a freestanding stalk.

The Apollo's main body is a discrete 12mm diameter with the option of adding a removable cowl for anti-glare. The cowl can also be used to focus the light spread.

This system includes a lockable rotation feature for directional control of the light.

The linear wand option, which features an inbuilt magnetic mounting system, makes positioning of the system effortless.

Product Datasheet User Guide

ufo lm4 led fitting

Overview

The UFO Apollo Gantry features a discrete 12mm diameter main body and is fitted with two 8mm diameter legs.

We offer a removable cowl accessory which can be attached by simply clipping around the Apollo' main body. The cowl offers anti-glare and can also be used to provide extra focus over the light. This system can also be rotated and locked in place to give directional control of the light.

There are two mounting options with the gantry system; screw-down feet or a back nut. The screw-down feet are simply screwed into the mounting surface, the back nut system is great for concealing the mounting method beneath the mounting surface.

The standard height available is 250mm, however this can be varied to order up to a maximum of 500mm.

Standard main body lengths start at 500mm. The overall length can be increased upto a maximum of 2995mm

Note that long gantry lengths will necessitate additional supporting legs.

Mounting Options

Screw Down Feet	Back Nut

The screw down mounting option comprises a 27mm diameter surface mounted foot at the base of each gantry leg. Each foot is secured by 3 countersunk M3 screws into the mounting surface. This is then hidden by a 29mm diameter decorative cover plate.

The back nut mounting method allows for the gantry to be secured from below the mounting surface. A threaded insert is pushed into each gantry leg. This inserts into the mounting surface through a 7mm hole and is secured underneath by a 6mm nut.

apollo mouting systems

Accessory Options

Standard With No Cowl

Using the Apollo with no cowl will give allow it to output the greatest spread of light. This is great for a general wash over the items to be illuminated.

ufo apollo gantry no cowl

ufo apollo gantry no cowl angle

Option With Rotating Cowl

The rotating cowl allows light to be directed at a specific angle and tightens the light beam. When used with the screwfix mounting method, the cowl is fitted in sections to allow the c-clips to be fitted at their specific positions.

ufo apollo gantry cowl

ufo apollo gantry cowl angle

APOLLO GANTRY / TECHNICAL INFORMATION
Available Colour Temperatures	2700K, 3000K, 4000K 2200K - 4000K tunable
No. of LEDs	182 LEDs per metre
CRI	97CRI
Lumen Output	950lm per metre
Track Supply Voltage (CV)	24V DC
Power Consumption	14.4W per metre
Beam Angles	100° without cowl / 70° with cowl
Mounting Options	Screw down feet or back nut
Height	250mm as standard with custom heights up to 500mm to order
Available Standard Overall Lengths	500mm minimum to 2995mm maximum
Material	Aluminum
Available Finishes	Black or silver anodised
Available Accessories	Rotating cowl

APOLLO GANTRY / DRIVER OPTIONS
24V Driver Options	Standard with no control options Manual dimming Casambi Bluetooth dimming Eulum Xicato enabled Bluetooth Dali dimming DMX dimming 0-10V dimming

ufo lm4 led fitting

ufo lm4 led fitting

Overview

The Apollo Linear Wand is great for concealment and effortless mounting of the lighting system itself. As with the gantry system, the main body is only 12mm diameter. The wand is mounted using either magnetic end pieces or by screw-in c-clips. Both options hold it securely in any position.

We offer a removable cowl accessory which can be attached by simply clipping around the Apollo' main body. The cowl offers anti-glare and can also be used to provide extra focus over the light. This system can also be rotated and locked in place to give directional control of the light.

Available overall lengths start at 500mm up to a maximum of 2995mm

Mounting Options

Magnetic Mounting

The magnetic mounting system comprises a fixing point at each end of the system with an inbuilt magnet. This allows the extrusion to be magnetically attached to an appropriate surface.

apollo linear fitting

ufo apollo linear cad

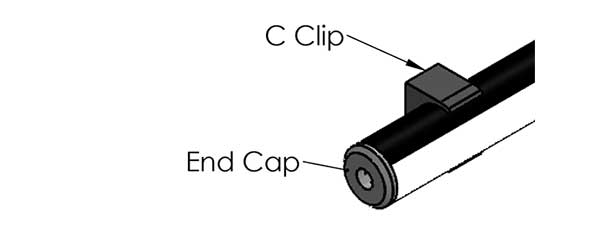

Screwfix Mounting

The screwfix mounting comprises a number of c-clips along the length of the Apollo extrusion. We normally recommend one clip at either end of the system and one approx. every 500mm along its length.

The extrusion is finished at each end by a decorative cap - one of which also allows the power cables to be inserted.

apollo screwfix fitting

ufo apollo linear screwfix cad

Accesory Options

Standard With No Cowl

Using the Apollo with no cowl will give allow it to output the greatest spread of light. This is great for a general wash over the items to be illuminated.

ufo apollo linear no cowl

ufo apollo linear no cowl angle

Option With Rotating Cowl

The rotating cowl allows light to be directed at a specific angle and tightens the light beam. When used with the screwfix mounting method, the cowl is fitted in sections to allow the c-clips to be fitted at their specific positions.

ufo apollo linear cowl

ufo apollo linear cowl angle

APOLLO LINEAR WAND / TECHNICAL INFORMATION
Available Colour Temperatures	2700K, 3000K or 4000K 2200K - 4000K tunable
No. of LEDs	182 LEDs per metre
CRI	97CRI
Lumen Output	950lm per metre
Track Supply Voltage (CV)	24V DC
Power Consumption	14.4W per metre
Beam Angles	100° without cowl / 70° with cowl
Mounting Options	Magnetic or screwfix mounting
Available Standard Overall Lengths	500mm minimum to 2995mm maximum
Material	Aluminum
Available Finishes	Black or silver anodised
Available Accessories	Rotating cowl, surface mount clips

APOLLO LINEAR WAND / DRIVER OPTIONS
24V Driver Options	Standard with no control options Manual dimming Casambi Bluetooth dimming Eulum Xicato enabled Bluetooth Dali dimming DMX dimming 0-10V dimming

Overview

The Apollo freestanding stalk is a modern, contemporary lighting system which can be configured to a range of lengths. As with the gantry system, the main body is a sleek 12mm diameter. The stalk is supplied with a screw down surface mount foot to secure it vertically to most surfaces.

Available overall lengths start at 200mm and extend to a maximum of 1000mm.

The freestanding Apollo can be supplied illumimated along its full length or we can black out the bottom section of it so only the top part is lit.

ufo apollo freestanding cad

The above diagram shows the Apollo with the bottom (length J) blacked out and the top (length I) illuminated.

APOLLO FREESTANDING STALK / TECHNICAL INFORMATION
Available Colour Temperatures	2700K, 3000K or 4000K 2200K - 4000K tunable
No. of LEDs	182 LEDs per metre
CRI	97CRI
Lumen Output	950lm per metre
Track Supply Voltage (CV)	24V DC
Power Consumption	14.4W per metre
Beam Angles	100°
Mounting Options	Surface mount foot
Available Standard Overall Lengths	200mm minimum to 1000mm maximum
Lit Length	varies depending on specification
Material	Aluminum
Available Finishes	Black or silver anodised

APOLLO FREESTANDING STALK / DRIVER OPTIONS
24V Driver Options	Standard with no control options Manual dimming Casambi Bluetooth dimming Eulum Xicato enabled Bluetooth Dali dimming DMX dimming 0-10V dimming

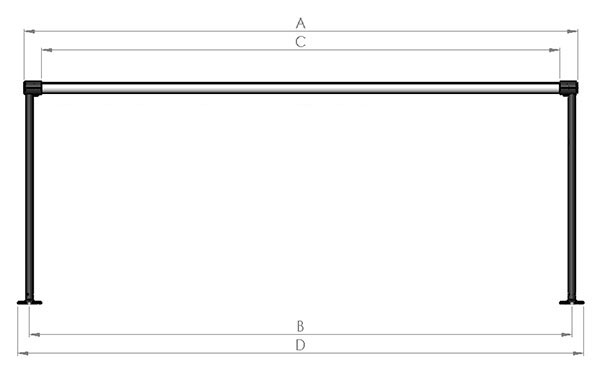

Apollo Gantry - 2 Leg Variants - Sizing Information

Smaller gantries can be supported by a leg at either end. Relevant dimensions are shown on the drawing opposite and described below.

Minimum Length of A = 500mm / Maximum Length of A = 1150mm

Dimension Ref.	Description	How To Work Out
A	Full length of gantry	N/A
B	Centres of gantry legs	13mm less than A
C	Max. visible lit length*	40mm less than A
D	Overall Width with surface mount feet**	14mm greater than A

* During manufacture we will always make the illuminated area as long as possible. Depending on sizes specified though and the length of LED tape sections, it may be that the illuminated area needs to have short blacked out diffuser at either end. This will be shown on drawings sent for approval.

** The overall width if using backnut secured feet is equal to dimension A.

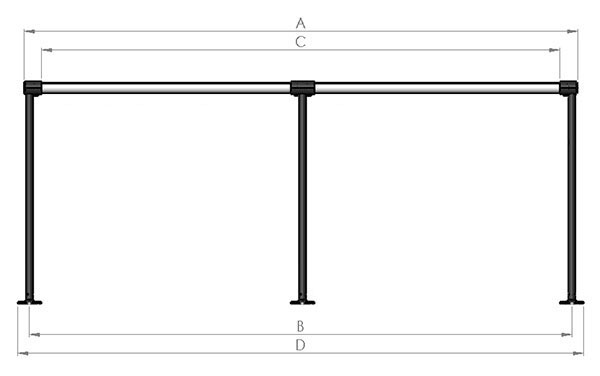

Apollo Gantry - 3 Leg Variants - Sizing Information

Medium sized gantries are supported by a leg at either end and 1 in the centre. Relevant dimensions are shown on the drawing opposite and described below.

Minimum Length of A = 1151mm / Maximum Length of A = 2225mm

Dimension Ref.	Description	How To Work Out
A	Full length of gantry	N/A
B	Centres of gantry legs	13mm less than A
C	Max. visible lit length*	40mm less than A
D	Overall Width with surface mount feet**	14mm greater than A

* During manufacture we will always make the illuminated area as long as possible. Depending on sizes specified though and the length of LED tape sections, it may be that the illuminated area needs to have short blacked out diffuser at either end. The visible lit length will also have a central break of 27mm where the central leg is attached. This will be shown on drawings sent for approval.

** The overall width if using backnut secured feet is equal to dimension A.

Apollo Gantry - 4 Leg Variants - Sizing Information

Larger sized gantries are supported by a leg at either end and 2 more equally spaced in the centre. Relevant dimensions are shown on the drawing opposite and described below.

Minimum Length of A = 2226mm / Maximum Length of A = 2995mm

Dimension Ref.	Description	How To Work Out
A	Full length of gantry	N/A
B	Centres of gantry legs	13mm less than A
C	Max. visible lit length*	40mm less than A
D	Overall Width with surface mount feet**	14mm greater than A

* During manufacture we will always make the illuminated area as long as possible. Depending on sizes specified though and the length of LED tape sections, it may be that the illuminated area needs to have short blacked out diffuser at either end. The visible lit length will also have a 2 breaks of 27mm where the central legs are attached. This will be shown on drawings sent for approval.

** The overall width if using backnut secured feet is equal to dimension A.

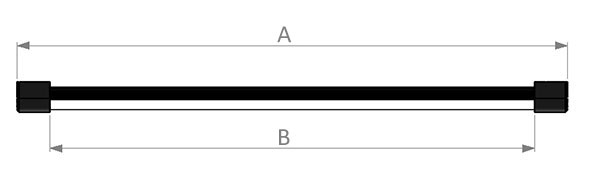

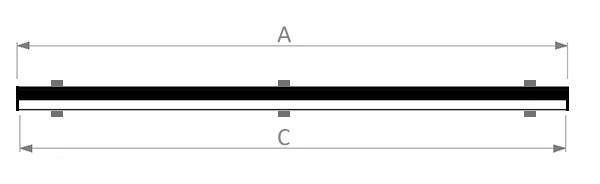

Apollo Linear - Sizing Information

Apollo Linear Wands are secured either by a magnetic foot at either end or by a series of c-clips along the length. Relevant dimensions are shown on the drawing opposite and described below.

Minimum Length of A = 500mm / Maximum Length of A = 2995mm

Dimension Ref.	Description	How To Work Out
A	Full length of fixture	N/A
B	Max. visible lit length when using magnetic feet*	36mm less than A
C	Max. visible lit length when using c-clips*	4mm less than A

* During manufacture we will always make the illuminated area as long as possible. Depending on sizes specified though and the length of LED tape sections, it may be that the illuminated area needs to have short blacked out diffuser at either end. This will be shown on drawings sent for approval.

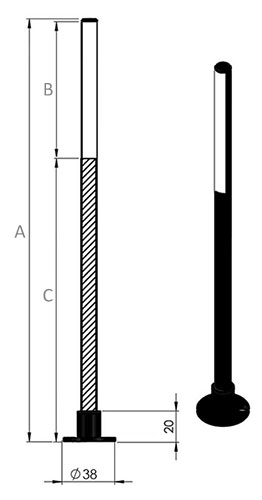

Apollo Stalk - Sizing Information

Apollo Freestanding Stalks are secured by a 38mm diameter surface mount foot on the base. Relevant dimensions are shown on the drawing opposite and described below.

Minimum Length of A = 200mm / Maximum Length of A = 1000mm

Dimension Ref.	Description
A	Full length of stalk
B	Example visible lit length
C	Example blacked out length

We can manufacture stalks with any length of dimensions B & C and also fully illuminated along as much of entire length as possible if required. Please contact us to discuss your particular requirements.
