Fiber Optic Mini Crook

The UFO Mini Crook is an optional termination to a fiber tail which holds the fiber at an angle from vertical and is very useful for illuminating a static arrangement of objects.

There are 4 configurations of the Mini Crook available as standard (see table above) which allow for variation in the overall height of the Crook and the angle of the light output.

Mounting feet, part number ABR06, are also available. These provide a decorative flange around the base of the crook as well as allowing for adjustment to be made from underneath the display case mounting surface.

Please note that the Mini Crook is attached to a harness and is not an interchangeable fitting.

TECHNICAL INFORMATION
Material	Stainless steel
Finish	Natural
Mounting Method	ABR06 mounting foot
Fiber Sizes	4.3mm diameter

Product Code	Dimension A	Dimension B
MC45-180	45°	180mm (7.09")
MC45-305	45°	305mm (12")
MC65-180	65°	180mm (7.09"
MC65-305	65°	305mm (12")

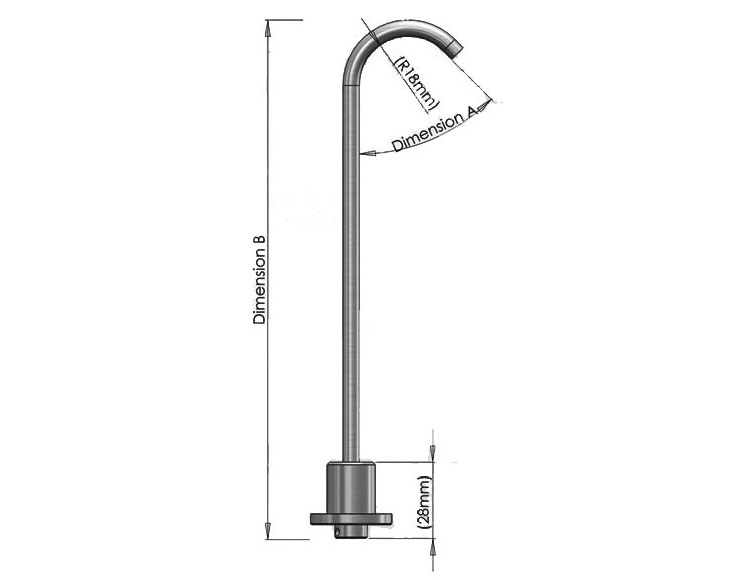

See CAD image for dimension A and B positions.
