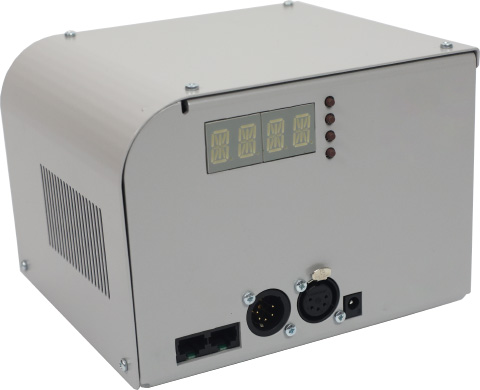

High powered RGBW light output and full DMX control make the Nova an LED illuminator capable of competing with all traditional illuminator types.
Utilising industry standard DMX to control the unit's color change effects, plus the option of adding a twinkle wheel and an RF remote control, this is the ultimate illuminator for powering decorative fiber optic effect lighting.
There are 2 twinkle wheel options available - the standard one which rotates continually and a sensor controlled one which rotates back and forth and has a blank segment to allow for full light output.
A 50,000 hour lamp life and cool quiet running ensure that maintenance costs are reduced to almost nil.
Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.
If you are one of the many people who have, in the past, purchased a fiber optic harness for use with a Fiberstars EFO-1+1 or EFO-AG illuminator, you may know that it is now virtually impossible to purchase a compatible, replacement illuminator.
With the EFO adaptor from UFO, your search is at an end!
Simply fit our adaptor collar over the fiber port, and insert the light amplifier into the port. Secure with the supplied screw and then attach your Fiberstars harness as normal.
You can now benefit from the great light output and features of a UFO illuminator without having the cost of replacing your fiber harness.
The adaptor can be supplied pre-attached to new illuminators or as a retro-fit kit for existing ones. Please get in touch to find out more.
The EFO Adaptor is designed to take a standard Fiberstars harness which has a 1” 7/8 ACME 10 TRAPEZOIDAL thread, and features an internal acrylic light amplifier which carries the light directly to the fiber ends.
EFO Large Core Fiber / Pre Assembled Harnesses
Fiberstars Part No.
Description
Each Fiber OD
Each Fiber ID
EFO-HF5-9/8-10 or XX
5 way
9mm (0.354")
8mm (0.266")
EFO-HF4-12/10-10 or XX
4 way
12mm (0.472")
10mm (0.394")
EFO-HF3-14/12-10 or XX
3 way
14mm (0.551")
12mm (0.472")
EFO-HF1-22/19-10 or XX
1 way
22mm (0.866")
19mm (0.748")
EFO Large Core Fiber / with compatible common end
Fiberstars Part No.
Description
Each Fiber OD
Each Fiber ID
EFO-9/8mm
1 way
9mm (0.354")
8mm (0.266")
EFO-12/10mm
1 way
12mm (0.472")
10mm (0.394")
EFO-14/12mm
1 way
14mm (0.551")
12mm (0.472")
EFO-17/15mm
1 way
22mm (0.866")
19mm (0.748")
EFO-22/19mm
1 way
22mm (0.866")
19mm (0.748")
EFO Side Emitting Fiber / with compatible common end
Fiberstars Part No.
Description
Each Fiber OD
Each Fiber ID
EFO-BC1300
1 way
13mm (0.508")
12mm (0.472")
EFO-BC1400-E
1 way
14mm (0.551")
12mm (0.472")
EFO-TT1300
1 way
13mm (0.508")
12mm (0.472")
EFO-TT1400-E
1 way
14mm (0.551")
12mm (0.472")
In addition to the items listed above, the adaptor is compatible with any Fiberstars harness fitted with a common end which has a 1” 7/8 ACME 10 TRAPEZOIDAL thread.
GENERAL INFORMATION
Port Connector Size
30mm diameter
Fiber Type
Glass / PMMA
Material / Finish
Aluminum, powdercoated grey (RAL9006)
Dimensions (L x W x H)
183mm x 178mm x 128mm 7.2" x 7.0" x 5.04"
Weight
1.91kg (3.75lb)
Operating Environment
Indoor use - IP20
Min. Ambient Temperature
-10°C (14°F)
Max. Ambient Temperature
45°C (113°F)
LIGHTING & CONTROL INFORMATION
Control Functionality
DMX, manual push-button and remote control options
DMX Addressing
User addressable to 512
DMX Interface
3 or 5 pin XLR sockets can be specified
DMX Channels
6 channels
Color Change Functionality
Controlled by DMX, manual push-button or remote control
Dimming Functionality
Controlled by DMX or remote control
Effects Wheels Options & Functionality
Twinkle wheel controlled by DMX or manual push-button operation. Available with or without sensor
LED ARRAY DATA
LED Array Type
Custom RGBW array
LED Array Power
46W
LED Array Model
Luxeon 36 LED Array
LED Array Life (L70, B10)
50,000 hours @ 25°C
White Color Temperature Options
6500K
ELECTRICAL CHARACTERISTICS
Supply Voltage
90-264Vac
Mains Running Current
0.2A @240Vac
Mains Voltage VA Rating
50VA
External PSU Type
Meanwell, 24V, 2.5A, 60W
Motor Type
Crouzet 829140 geared stepper motor
Fan Type
Sunon, 80mm, 22dBA
RF REMOTE CHARACTERISTICS
RF Remote Frequency
2.4GHz
RF Remote Range
30m, depending on environment
RF Remote Power
2 x AAA batteries (supplied)
AVAILABLE ACCESSORIES
MAS0403021R5
Weatherproof enclosure
CONFIGURATIONS
Click the option buttons below to create the fitting model number
MODEL TYPE
COLOR TEMP
EFFECT
REMOTE CONTROL
SENSOR
Model Number:
For the configuration of a twinkle wheel with sensor, the wheel is supplied with a cut out segment. The wheel in motion will give an uninterrupted twinkle by rotating backwards and forwards either side of the segment. When stop is selected the wheel will come to rest at the segment giving unobstructed white light output.
