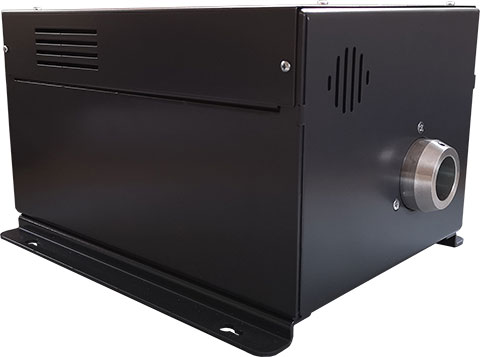

UFO Quasar Decorative LED Illuminator
The UFO Quasar Decorative. Extremely high powered light output and full DMX, 0-10V, 1-10V and manual control make this an LED illuminator unparalleled in its light output and control capabilities.
Utilises industry standard protocols to control the unit’s color change, twinkle and dimming effects. The Quasar’s LED is dimmable and you can also specify either a 10 segment color change, a twinkle, or a dual effect wheel to allow for decorative effects. This is the ultimate illuminator for illuminating decorative fiber optic effect lighting.
Features an LCD display which provides user feedback for ease of use.
Available in a range of color temperatures and in both >80CRI and >90 CRI versions.
Fitted with a standard 30mm fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.

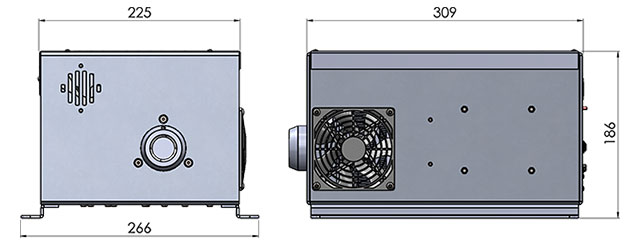

Note that dimensions are shown in mm
| GENERAL INFORMATION | |
|---|---|
| Port Connector Size | 30mm diameter |
| Fiber Type | Glass / PMMA |
| Material / Finish | Aluminum, grey powdercoat (RAL7200) |
| Dimensions (L x W x H) | 309mm x 266mm x 186mm 12.16" x 10.5" x 7.3" |
| Weight | 4.72kg (10.41lb) |
| Operating Environment | Indoor use - IP20 |
| Min. Ambient Temperature | -10°C (14°F) |
| Max. Ambient Temperature | 45°C (113°F) |
| LIGHTING & CONTROL INFORMATION | |
|---|---|
| Control Functionality | 0-10V / 1-10V / DMX / Manual Dimming |
| DMX Functionality | User addressable to 512 |
| DMX Channels | 5 channels |
| Effects Wheel Options & Functionality | Color or twinkle controlled by 0-10V, DMX or manual operation |
| LED ARRAY DATA | |
|---|---|
| LED Array Type | White light - 22mm LES CoB |
| LED Array Power | 150W |
| LED Array Model | Bridgelux Gen 8 V22 Series |
| LED Array Life (L70, B10) | 50,000 hours (typical)25°C |
| STANDARD CRI (>80) OPTIONS (Lumens direct from common end @ 90°C target temperarture) | ||
|---|---|---|
| 3000K: 21499lm | 4000K: 22131lm | 5000K: 22396lm |
| 5700K: 21499lm | 6500K: 22637lm |
| HIGH CRI (>90) OPTIONS (Lumens direct from common end @ 90°C target temperarture) | ||
|---|---|---|
| 2700K: 16693lm | 3000K: 17452lm | 4000K: 18464lm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Supply Voltage | 90-305Vac |
| Mains Running Current | 0.8A @240Vac |
| Mains Voltage VA Rating | 186VA |
| Fan Type | Sunon 92mm - 32dBA |
| Motor Type | Rotalink 25C13/YS0LPSL3E - 12V - 60:1 |
| AVAILABLE ACCESSORIES | |
|---|---|
| MAS0504026R5 | Weatherproof enclosure |
| UFO Unidim CVD1 | Remote manual dimmer with plate |
| UFO Unidim CVD3 | Remote current sink dimmer with plate |
| UFO Unifeed SFD1 | Separate feed unit for decorative wheel |
