Sauna & Spa Lighting

Sauna Downlight Kit


Kit Overview

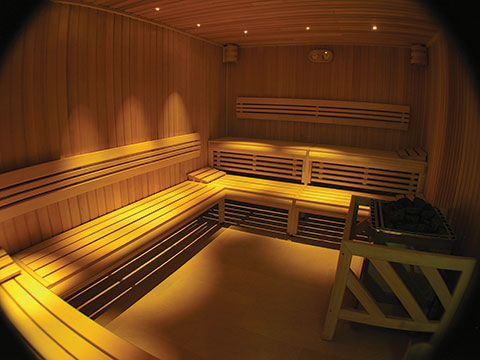

Our downlight kits offer the ideal solution for those interested in mood enhancing lighting within saunas, steam rooms, swimming pools and spas.
Once installed in a ceiling the kits’ stainless steel downlight fittings allow scallops of warm white light to be cast across walls or floors.
Alternatively if you want to enhance your mental and physical wellbeing with coloured light, you can opt for our Cube illuminator with its colour-changing capabilities.

UFO Downlight Fittings

Kits are supplied with 4, 6 or 8 stainless steel downlight fittings. Number supplied depends on the kit ordered.

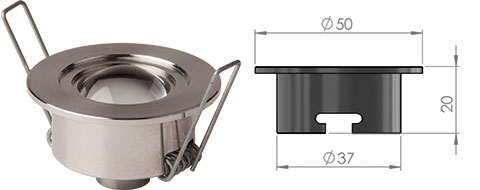

The fitting diameter is 50mm (1.97") and they require a 40mm (1.57") cut out for installation.
fitting image

Note that dimensions are shown in mm


Fiber Optic Harness

The harness is manufactured from 4mm diameter glass fiber for an extra bright lighting effect.
fiber optic harness

Illuminator Options

Ordering Codes

Fiber Tail Lengths & Sizes End Fittings Order Code (with Vega Illuminator) Order Code (with Nova Mini Illuminator)
4 x 3 meter (9.84ft) length - 4mm glass fiber 4 x stainless steel fittings SDL-4-VS SDL-4-NM
6 x 4 meter (13.12ft) length - 4mm glass fiber 6 x stainless steel fittings SDL-6-VS SDL-6-NM
8 x 4 meter (13.12ft) length - 4mm glass fiber 8 x stainless steel fittings SDL-8-VS SDL-8-NM
