Downlight Fittings For Fiber Optics

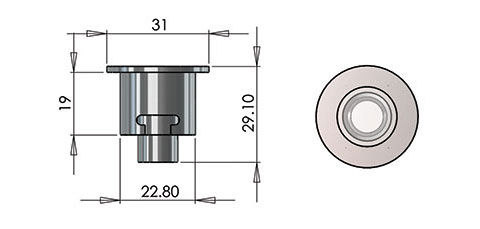

UFO 21D Downlight Fitting

A compact fixed lens downlight fitting, secured through the mounting surface with spring clips.
Available in a range of finishes, the light beam from this fitting is also focusable.
Also suitable for mounting in the base of a display case and illuminating upwards.
316 stainless steel version is suitable for use in wet areas. We can also supply the stainless steel version with a glass lens making it suitable for use in saunas and steam rooms.
TECHNICAL INFORMATION
Lens18mm (0.71") biconvex clear focusing lens
Focus Range30° - 60°
MaterialAluminum or stainless steel
Available FinishesAluminum: Black, white or natural
Chrome finish subject to availability
Stainless Steel: natural
Weight18.9g (0.04lb)
Mounting MethodRecessed, secured with springs
Mounting Hole Size26mm (1.02")
Ferrule SizeM10 or 8mm smooth
Fiber Sizes2mm (0.08") to 8mm (0.32")
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Material

Finish

Ferrule

Model Number:
