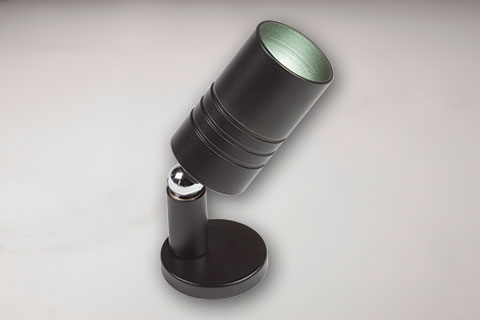

UFO MBL2 LED Downlight Fitting

The MBL2, features the same magnetic articulation system as its sibling, the MBL1. The magnetic ball that is present in the fitting provides complete freedom of movement so that the luminaire can be rotated 360° and tilted to point the light exactly where it is needed most.
With a bezel spanning 25mm (0.98") in diameter and a body of 38mm (1.5") in length, a choice of color temperatures with high color rendition, the fitting can be used to provide contemporary, functional lighting in any environment. Whether you want to illuminate a display or highlight architectural features, it is possible with this surface mountable fitting.
The MBL2 is mains, local pot and 1-10v dimmable using a UFO approved dimmer switch. It can also be configured in either 350mA or 500mA versions.
Product Datasheet
Quickstart Guide
UFO MBL2 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminum
Available FinishesBlack, White, Silver or Custom RAL
DimensionsBase: 30mm (1.18") diameter x 5mm (0.2")
Head: 15mm (0.59") diameter x 38mm (1.5")
Base Height: 25mm (0.98")
Weight64g (0.14lb)
Securing MethodSecured through surface with screws
UFO MBL2 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt90°
UFO MBL2 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 20mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Color Temperature Options2700K, 3000K, 4000K
CRI>95
Lumen Output100lm @ 350mA, 140lm @ 500mA
LED Luminous Efficacy98lm/W
Driver TypeConstant Current LED Driver Required
UFO MBL2 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics13.5° / 19° / 28°
UFO MBL2 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finish

Model Number:
Notes:
Please state RAL number for custom flange colours
