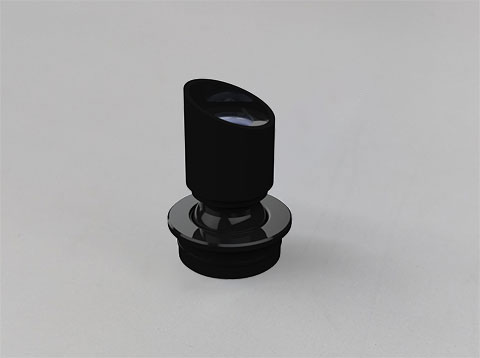

UFO Nano LED Downlight Fitting

The UFO Nano LED fitting. With a design based on one of our most popular fiber optic fittings, the 34D is perfect for use in display cabinets where a small and unobtrusive spot light is required.
Featuring a choice of 2 popular colour temperatures and a high CRI, together with an easily adjustable snoot, the Nano is perfect for illuminating small objects within a display case. To further aid in this, the luminaire can be rotated by 360° and offers 50° of tilt in any direction.
Depending on the driver specified, the Nano can be dimmed using any of multiple options allowing it to seamlessly blend into almost any existing lighting scheme.
Like the 34D, the Nano is mounted by simply press fitting - either directly into a surface or into a mounting extrusion.
Product Datasheet
UFO NANO DOWNLIGHT / GENERAL INFORMATION
Light sourceWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminium
Available FinishesAnodised black or silver
Powdercoated to any custom RAL color.
Note that the ball will always be black or silver and cannot be powdercoated.

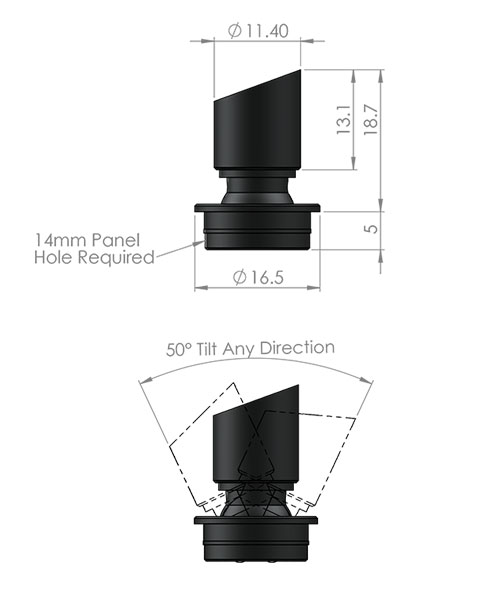

Dimensions16.5mm diameter x 18.3mm height
Weight5g
Securing MethodPress fit into 14mm panel cutout.
UFO NANO DOWNLIGHT / ARTICULATION
Rotation360°
Tilt50°
UFO NANO DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current150mA
Power Consumption1W @ 150mA
Color Temperature Options3000K, 4000K
CRI>96
Lumen Output27lm @ 150mA
LED Luminous Efficacy53lm/W
Driver TypeConstant Current LED Driver Required
UFO NANO DOWNLIGHT / OPTICS DATA
Available Optic50°
UFO NANO DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finish

Model Number:
Please state RAL code for custom RAL color.
