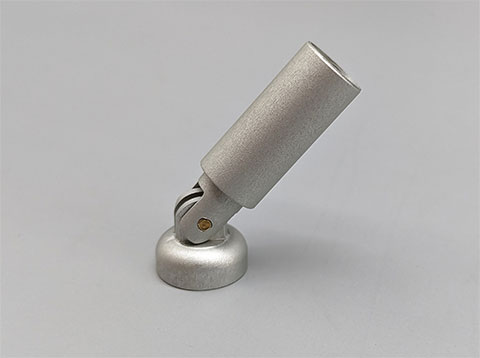

UFO Pico LED Downlight Fitting
The tiny UFO Pico is specially designed for use in museum and retail display cases where its diminutive size means is can bring unobtrusive lighting detail to the objects on display.
Featuring a choice of 2 popular color temperatures and a high CRI, together with an easily adjustable focusing optic, the Pico is perfect for illuminating small objects or for highlighting specific points of interest. To further aid in this, the luminaire can be rotated by 360° and offers a wide 130° of tilt.
Depending on the driver specified, the Pico can be dimmed using any of multiple options allowing it to seamlessly blend into almost any existing lighting scheme.

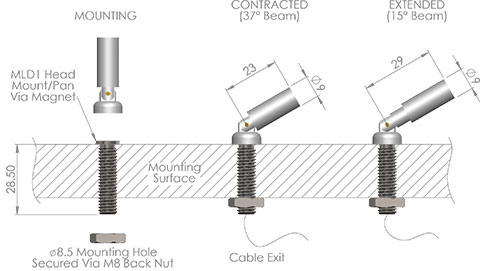

Note that dimensions are shown in mm.
| UFO PICO DOWNLIGHT / GENERAL INFORMATION | |
|---|---|
| Light source | White Light LED |
| Operating Environment | Indoor use only |
| Material | Aluminium |
| Available Finishes | Anodised black or silver |
| Dimensions | Height: 31mm retracted / 37mm extended Diameter: 9mm head / 12mm base |
| Weight | 11g |
| Securing Method | Secured with back nut |
| UFO PICO DOWNLIGHT / ARTICULATION | |
|---|---|
| Rotation | 360° |
| Tilt | 130° |
| UFO PICO DOWNLIGHT / LED ARRAY DATA | |
|---|---|
| LED Type | Osram Oslon Square |
| LED Life (L70, B10) | >54,000 Hours |
| Fitting Drive Current | 150mA |
| Power Consumption | 0.5W @ 150mA |
| Color Temperature Options | 3000K, 4000K |
| CRI | >96 |
| Lumen Output | 27lm @ 150mA |
| LED Luminous Efficacy | 53lm/W |
| Driver Type | Constant Current LED Driver Required |
| UFO PICO DOWNLIGHT / OPTICS DATA | |
|---|---|
| Optic | Focusable |
| Focusing Range | 15° - 37° |
| UFO PICO DOWNLIGHT / DRIVER DIMMING OPTIONS | |
|---|---|
| Driver Specific | No Dimming 0-10V DALI Remote Potentiometer Dimming |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Optics
Color Temp
Finish
Model Number:
