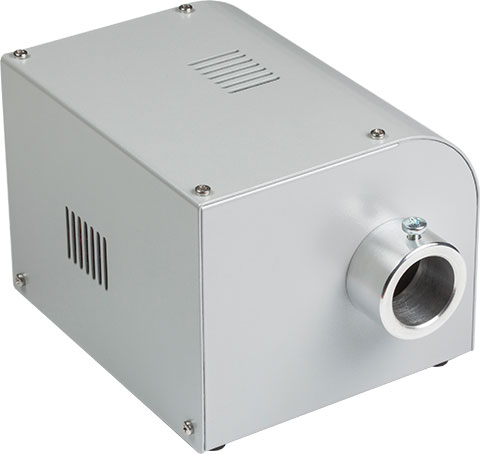

UFO Luna Decorative LED Illuminator

Combines the bright white light output of the standard Luna with an in-built effects wheel..
Featuring the same fanless internal components as its sister, the Luna Decorative's larger shell conceals a built in effects wheel offering either color change or twinkle effects. Control options for the wheel are either DMX, 0-10V or manual control using the rear mounted potentiometer.
Dimming is also available on all models and is controlled via the same method as the effects wheel.
GENERAL INFORMATION
Port Connector Size30mm diameter
Fiber TypeGlass / PMMA
Material / FinishAluminum, Powdercoated (RAL9006)
Dimensions (L x W x H)152mm x 132mm x 112mm
5.97" x 5.2" x 4.41"
Weight1.18kg (2.6lb)
Operating EnvironmentIndoor use - IP20
Min. Ambient Temperature-10°C (14°F)
Max. Ambient Temperature45°C (113°F)
LIGHTING & CONTROL INFORMATION
Control Functionality0-10V / DMX / Manual Dimming
DMX FunctionalityUser addressable to 512
DMX Channels2 channels
Color Change Functionality0-10V / DMX / Manual
Effects Wheel Options and FunctionalityColor or twinkle controlled by 0-10V, DMX or manual operation
LED ARRAY DATA
LED Array TypeWhite light
LED Array Power11.5W
LED Array ModelCree Xlamp - MC-E
LED Array Life (L70, B10)>36,000 hours (typical)
3000K LED Option80CRI / 550lm
4000K LED Option80CRI / 550lm
ELECTRICAL CHARACTERISTICS
Supply Voltage90-264Vac
Mains Running Current0.09A @240Vac
Mains Voltage VA Rating19VA
External PSU TypeMeanwell, 24V, 0.75A, 18W
Motor TypeRotalink 25C13/YS0LPSL3E - 12V - 60:1
AVAILABLE ACCESSORIES
MAS0403021R5Weatherproof enclosure
CONFIGURATIONS Click the option buttons below to create the fitting model number

MODEL TYPE

COLOR TEMPERATURE

MANUAL DIM*

EFFECT

CONTROL

Model Number:

*Manual dimming is only available on illuminators with manual control option. The Luna XCM(color wheel) & Luna XTM (twinkle wheel) have manual speed control on the decorative motor. On these versions the light output is set to maximum and cannot be dimmed.

The Luna MCM & Luna MTM have manual speed control on the decorative motor and also manual dimming control of the LED. The light output can be adjusted manually using the controlon the rear of the unit from no light output to maximum light output.
