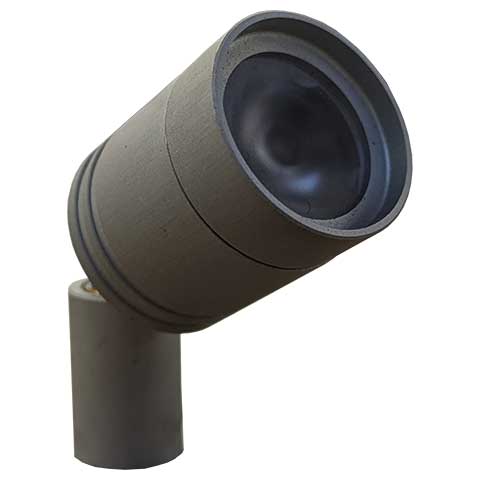

UFO Bloom MX LED Downlight Fitting
The UFO Bloom MX features a sleek design, easy installtion and magnetic articulation for 360° rotation and 90° tilt.
With a body of 25mm in diameter and a stalk of 21.5mm in length, the surface mountable Bloom MX is the larger of the two fittings in this range. It features a cleverly designed magnetic ball joint that provides complete freedom of movement, allowing the luminaire to be fully rotated and tilted to point the light in almost any direction.
Available with a choice of color temperatures, high color rendition, and a selection of optics - including a focusable snoot, the diminutive fitting provides contemporary, functional lighting in any indoor environment.
Depending on the driver specified, the MX can be dimmed using any of multiple options.

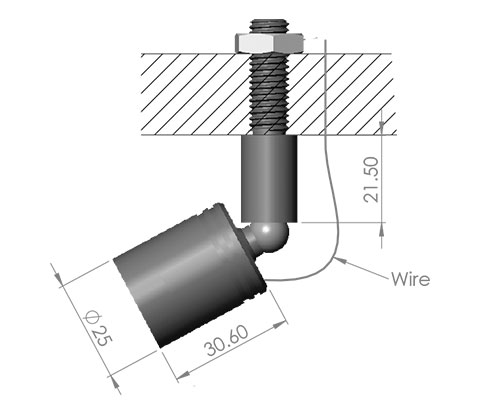

Note that dimensions are shown in mm.
| UFO BLOOM MX DOWNLIGHT / GENERAL INFORMATION | |
|---|---|
| Light source | White Light LED |
| Operating Environment | Indoor use only |
| Material | Aluminum |
| Available Finishes | Black, white, silver or custom RAL |
| Dimensions | Body: 25mm diameter x 31mm Stalk: 14mm diameter x 21.5mm |
| Weight | 46g (with standard snoot) |
| Securing Method | Secured with M10 back nut |
| UFO BLOOM MX DOWNLIGHT / ARTICULATION | |
|---|---|
| Rotation | 360° |
| Tilt | 90° |
| UFO BLOOM MX DOWNLIGHT / LED ARRAY DATA | |
|---|---|
| LED Type | Osram Oslon Square on 20mm Alu Star PCB |
| LED Life (L70, B10) | >54,000 Hours |
| Fitting Drive Current | 350mA or 500mA |
| Power Consumption | 1W @ 350mA / 1.5W @ 500mA |
| Color Temperature Options | 2700K, 3000K, 4000K |
| CRI | >95 |
| Lumen Output | 100lm @ 350mA / 140lm @ 500mA |
| LED Luminous Efficacy | 98lm/W |
| Driver Type | Constant Current LED Driver Required |
| UFO BLOOM MX DOWNLIGHT / OPTICS DATA | |
|---|---|
| Optics Family | Carclo 20mm |
| Available Optics | 13.5° / 19° / 28° With an adaptor can also use 16° / 23° / 36° / 61° / 80° / 45°x20° / 20°x50° A focusable snoot is also available which can be twisted to adjust the beam angle between 5° and 30°. |
| UFO BLOOM MX DOWNLIGHT / DRIVER DIMMING OPTIONS | |
|---|---|
| Driver Specific | No Dimming 0-10V DALI DMX Mains Local Potentiometer Dimming Remote Potentiometer Dimming |
| UFO BLOOM MX DOWNLIGHT / ACCESSORIES | |
|---|---|
| Optional Accessories | Extended Snoot Directional Snoot Honeycomb Louvre Diffuser |
| CONFIGURATIONS | Click the option buttons below to create the fitting model number |
|---|
Model Type
Optics
Color Temp
Finish
Accessories
Accessories 2
Model Number:
Notes:
Please state RAL number for custom flange colors
Please state RAL number for custom flange colors
