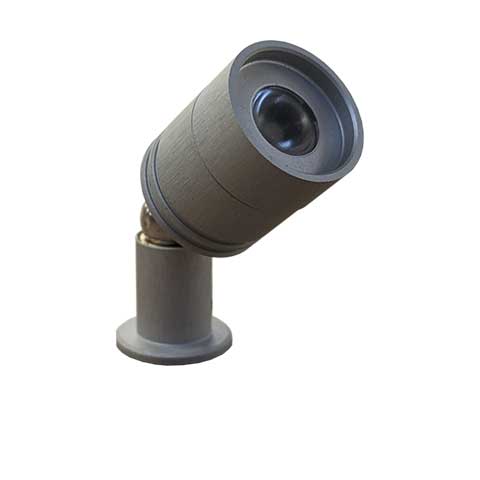

UFO Bloom SX LED Downlight Fitting

The UFO Bloom SX features a sleek design, easy installtion and magnetic articulation for 360° rotation and 90° tilt.
With a body of 16mm in diameter and a stalk of 13.5mm in length, the surface mountable Bloom SX is the smaller of the two fittings in this range. It features a cleverly designed magnetic ball joint that provides complete freedom of movement, allowing the luminaire to be fully rotated and tilted to point the light in almost any direction.
Available with a choice of color temperatures, high color rendition, and a selection of optics, the diminutive fitting provides contemporary, functional lighting in any indoor environment.
Depending on the driver specified, the SX can be dimmed using any of multiple options.

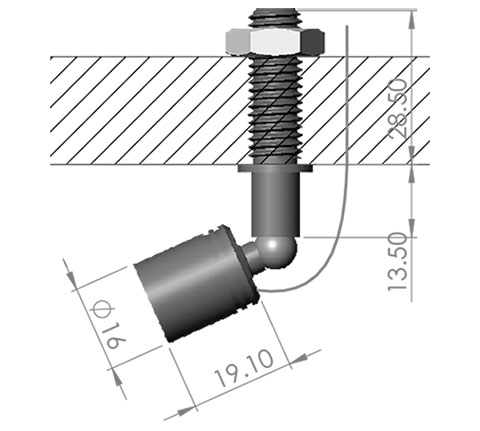

Note that dimensions are shown in mm.
Product Datasheet
UFO BLOOM SX DOWNLIGHT / GENERAL INFORMATION
Light sourceWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminum
Available FinishesBlack, white, silver or custom RAL
DimensionsBody: 16mm diameter x 23mm
Stalk: 9mm diameter x 13.5mm
Weight32g (with standard snoot)
Securing MethodSecured with M10 back nut
UFO BLOOM SX DOWNLIGHT / ARTICULATION
Rotation360°
Tilt90°
UFO BLOOM SX DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 9.5mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Color Temperature Options2700K, 3000K, 4000K
CRI>95
Lumen Output100lm @ 350mA
LED Luminous Efficacy98lm/W
Driver TypeConstant Current LED Driver Required
UFO BLOOM SX DOWNLIGHT / OPTICS DATA
Optics FamilyLedil Lisa2
Available Optics16° / 23° / 36° / 61° / 80° / 45°x20° / 20°x50°
UFO BLOOM SX DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
UFO BLOOM SX DOWNLIGHT / ACCESSORIES
Optional AccessoriesExtended Snoot
Directional Snoot
Honeycomb Louvre
Diffuser
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finish

Accessories

Accessories 2

Model Number:
Notes:
Please state RAL number for custom flange colors
