UFO LPV1 LED Downlight Fitting

Surface mount LED downlight fitting with free rotation and tilt.
The UFO LPV1 fitting features a sleek design and 360° rotation with 90° + 45°C (113°F) articulation in the pivot.
Available in a choice of color temperatures with high color rendition and a selection of optics, the fitting can be used to provide contemporary, functional lighting in any environment.
Product Datasheet
Quickstart Guide
UFO LPV1 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminum
Available FinishesBlack or silver

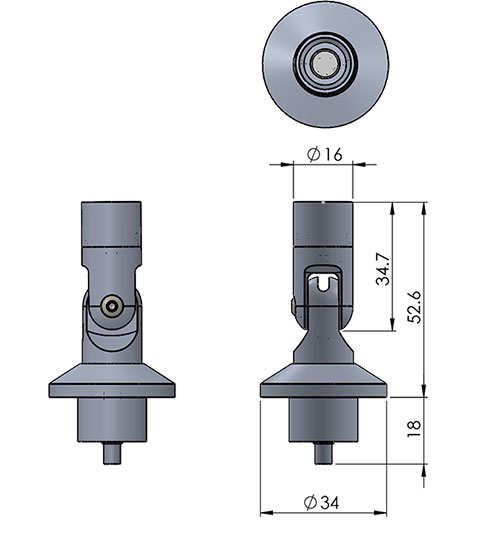

Dimensions34mm (1.34") Diameter x 52.6mm (2.07") Length
Securing MethodSurface mount with screws
UFO LPV1 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt90° + 45°C (113°F)
UFO LPV1 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 16mm Diameter PCB
LED Life (L70, B10)>50,000 Hours
Fitting Drive Current350mA or 500mA
Power Consumption1W @ 350mA / 1.5W @ 500mA
Color Temperature Options2700K, 3000K or 4000K
CRI (typical)2700K: >95
3000K: >96
4000K: >95
LED Luminous Efficacy(based on 350mA driver)
2700K: 75lm/W
3000K: 77lm/W
4000K: 80lm/W
Driver TypeConstant Current LED Driver Required
UFO LPV1 DOWNLIGHT / OPTICS DATA
Optics FamilyCarclo
Available Optics16° / 23° / 36° / 61°
UFO LPV1 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finish

Model Number:
Notes:
Please state RAL number for custom color
