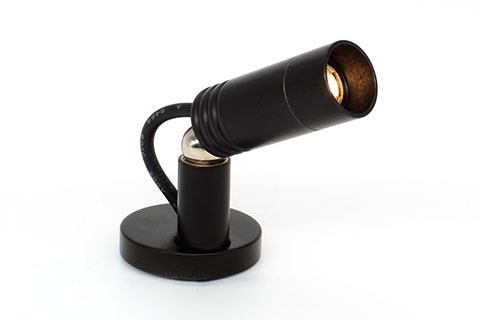

UFO MBL1 LED Downlight Fitting

The UFO MBL range of high performance fittings features a sleek design and the latest magnetic articulation for 360° rotation.

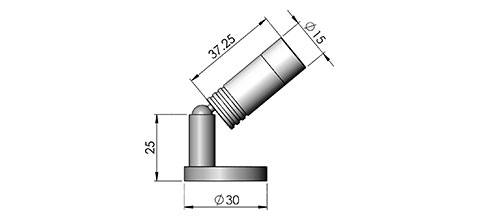

With a bezel of 15mm (0.59") in diameter and a body of 37.25mm (1.47") in length, the surface mountable MBL1 is the smaller of the two fittings in this range. It features a cleverly designed magnetic ball joint that provides complete freedom of movement, allowing the luminaire to be fully rotated and tilted to point the light in almost any direction.
Available with a choice of color temperatures, high color rendition, and a selection of optics, the diminutive fitting provides contemporary, functional lighting in any indoor environment.
The MBL1 is mains, local pot and 1-10v dimmable using a UFO approved dimmer switch.
Product Datasheet
Quickstart Guide
UFO MBL1 DOWNLIGHT / GENERAL INFORMATION
IlluminatorWhite Light LED
Operating EnvironmentIndoor use only
MaterialAluminum
Available FinishesBlack, Silver or Custom RAL
DimensionsBase: 30mm (1.18") diameter x 5mm (0.2")
Head: 15mm (0.59") diameter x 37.5mm (1.47")
Base Height: 25mm (0.98")
Weight40g (0.09lb)
Securing MethodSecured through surface with screws
UFO MBL1 DOWNLIGHT / ARTICULATION
Rotation360°
Tilt90°
UFO MBL1 DOWNLIGHT / LED ARRAY DATA
LED TypeOsram Oslon Square on 9.5mm Diameter PCB
LED Life (L70, B10)>54,000 Hours
Fitting Drive Current350mA
Power Consumption1W @ 350mA
Color Temperature Options2700K, 3000K, 4000K
CRI>95
Lumen Output100lm @ 350mA, 140lm @ 500mA
LED Luminous Efficacy98lm/W
Driver TypeConstant Current LED Driver Required
UFO MBL1 DOWNLIGHT / OPTICS DATA
Optics FamilyLedil Lisa2
Available Optics16° / 23° / 36° / 61°
UFO MBL1 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver SpecificNo Dimming
0-10V
DALI
DMX
Mains
Local Potentiometer Dimming
Remote Potentiometer Dimming
CONFIGURATIONS Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Finish

Model Number:
Notes:
Please state RAL number for custom flange colours
