UFO MBL3 LED Downlight Fitting

The UFO MBL3 fittings features a sleek design and the latest magnetic articulation for 360° rotation.

Featuring a cleverly designed magnetic ball joint that provides complete freedom of movement, allowing the luminaire to be fully rotated and tilted to point the light in almost any direction.

The MBL3 is mains, local pot and 1-10v dimmable using a UFO approved dimmer switch.

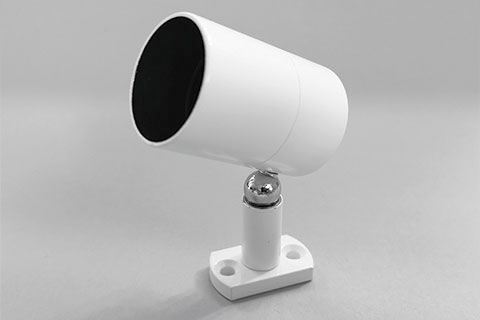

ufo mbl3 led fitting

ufo mbl3 led fitting

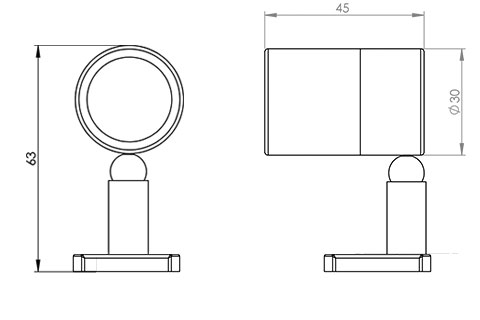

mbl3 led fitting cad image

Note that dimensions are shown in mm.

Mounting Foot Choice

As standard the MBL3 is supplied with a round foot which features a decorative cover to hide the mounting screws. Optionally, a rectangular variant is also available which allows for a greater angle of tilt.

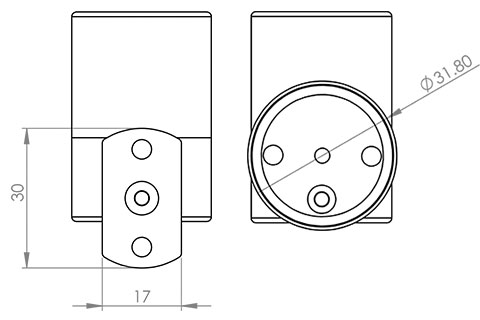

The image below shows the 2 options - rectangular on the left and round on the right.

mbl3 led fitting foot choice image

Product Datasheet

UFO MBL3 DOWNLIGHT / GENERAL INFORMATION
Illuminator	White Light LED
Operating Environment	Indoor use only
Material	Aluminum
Available Finishes	Black, White, Silver or Custom RAL
Dimensions	Base: 30mm (1.18") diameter x 5mm (0.2") Head: 30mm (1.18") diameter x 45mm (1.77") Base Height: 25mm (0.98")
Weight	78g (0.17lb)
Securing Method	Secured through surface with screws

UFO MBL3 DOWNLIGHT / ARTICULATION
Rotation	360°
Tilt	90°

UFO MBL3 DOWNLIGHT / LED ARRAY DATA
LED Type	Osram Oslon Square on 20mm Star PCB
LED Life (L70, B10)	>54,000 Hours
Fitting Drive Current	350mA, 500mA or 700mA
Power Consumption	1W @ 350mA, 1.5W @ 500mA, 2.1W @ 700mA
Color Temperature Options	2700K, 3000K, 4000K
CRI	>95
Lumen Output	See photometric data below
LED Luminous Efficacy	See photometric data below
Driver Type	Constant Current LED Driver Required

UFO MBL3 DOWNLIGHT / OPTICS DATA
Optics Family	Carclo
Available Optics	7° / 9° / 21°

UFO MBL3 DOWNLIGHT / DRIVER DIMMING OPTIONS
Driver Specific	No Dimming 0-10V DALI DMX Mains Local Potentiometer Dimming Remote Potentiometer Dimming

CONFIGURATIONS	Click the option buttons below to create the fitting model number

Model Type

Optics

Color Temp

Color

Foot Type

Model Number:

Notes:
Please state color for custom aluminum finish.

Photometric Data

Photometric are shown below for one specific & popular configuration of the fitting. We can provide details of other configurations on request, so please contact us for information regarding your particular requirements.

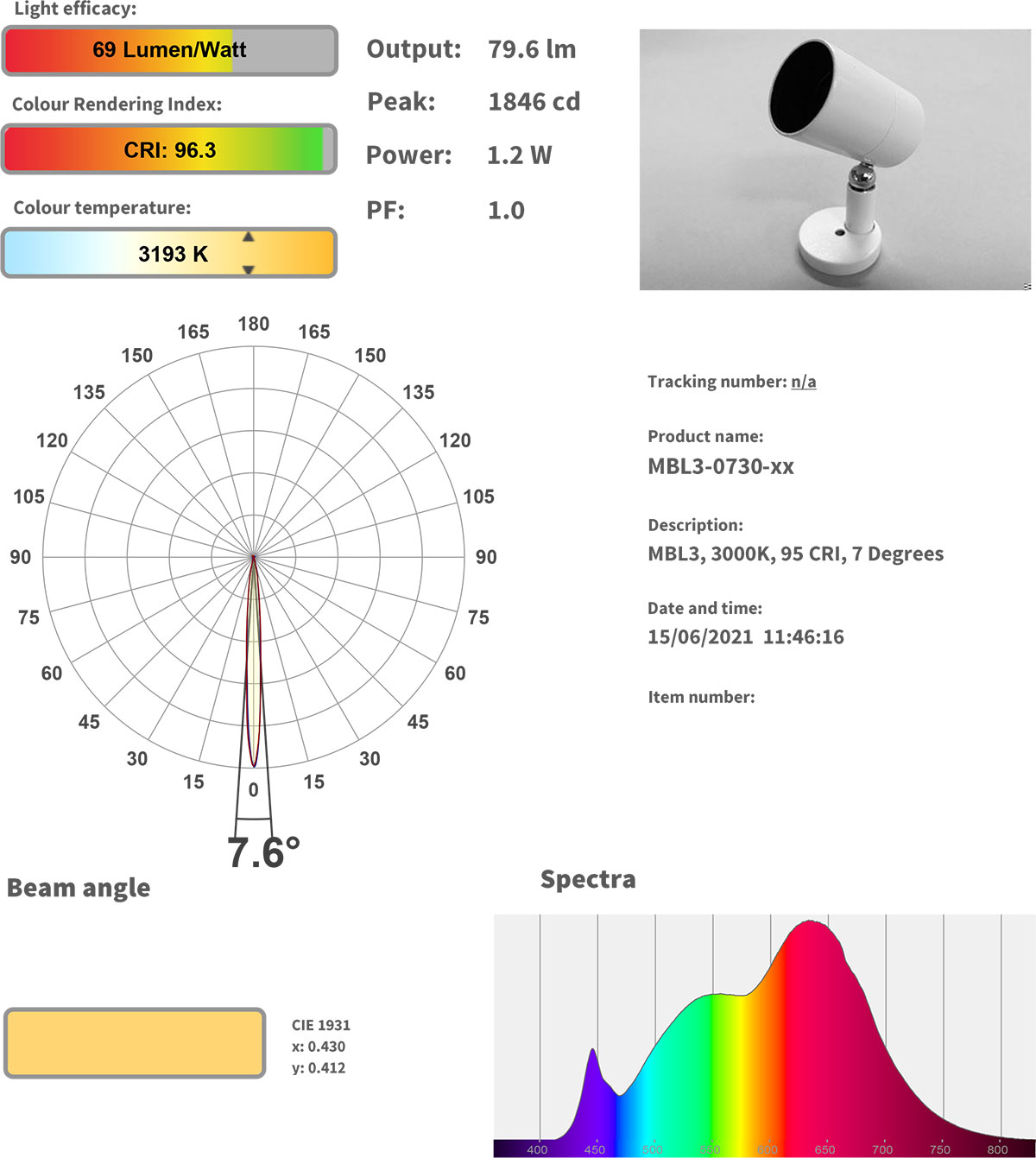

Overview

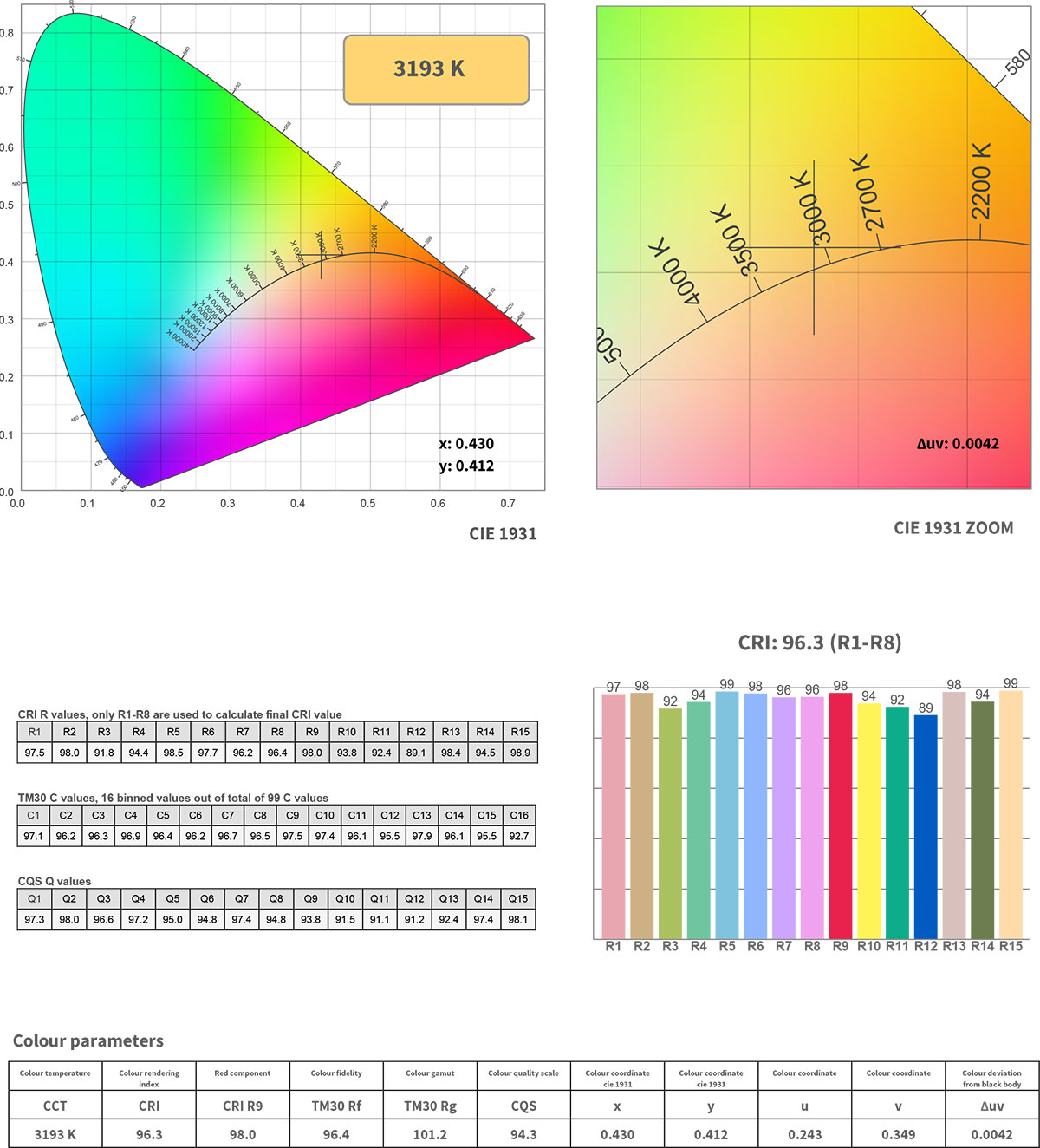

Light Details

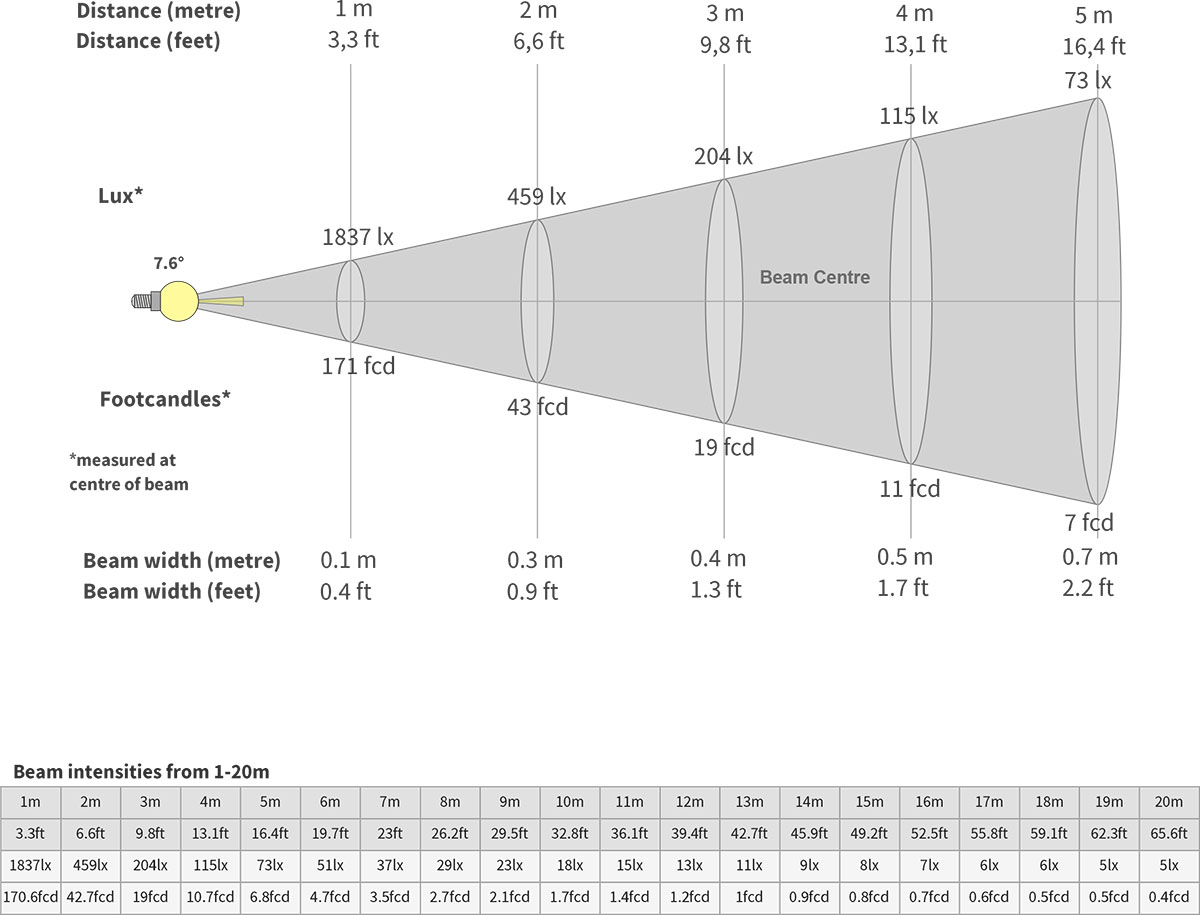

Beam Details

IES Data LDT Data

The data presented in this document is generated using a popular combination of color temperature and lens using a 350mA driver. We can provide data for all combinations of color temperatures, drivers and lens options available for a specific fitting - please contact us for these details.

When information is requested for a specific combination there may be a short delay in supplying this as it may require us to set up a testing procedure for that particular combination. We will advise at the time of request how long it will take to supply the data.

Power figures provided have been generated based on the voltage and current to the fitting only and do not allow for any losses due to the driver. We measure this way because our fittings can be used with a variety of different drivers and are loaded differently. These driver variations affect the power factor and efficiency which distorts the figure provided for power consumption.

UFO recommend that a tolerance of +/- 5% should be applied to all figures presented on these datasheets due to variances that can occur between different components. For example there may be slight ambient temperature variations during measuring or some slight variations in LED modules through the bin.
